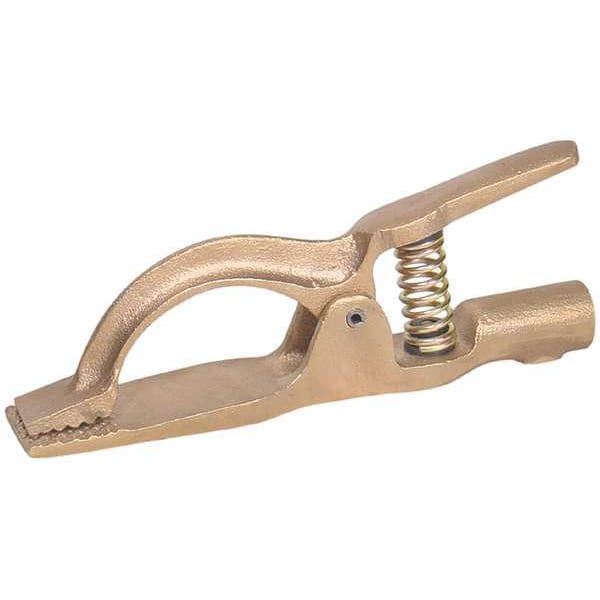

Zoro Select Brass Ground Clamp 600A, 1 1/2ln 19N769 - main

Brass Ground Clamp 600A, 1 1/2ln

  • Mfr # 19N769

  • Zoro # G4528754

product price: $47.59
/ea

Key Features

Features
High-Tensile Spring to Grip Tight
Material
Brass
Overall Length
8 in
Overall Height
3.8 in
Characteristics
Brass, 4/0 Cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
19N769
Zoro #
G4528754
UPC #
190735397367
Country of Origin
India

Dimensions

Overall Length
8 in
Overall Height
3.8 in
Overall Width
0.8 in
Thread Diameter
9/16 in
Throat Depth
4 3/8 in
Clamp Height
3 3/4 in

Details

Item
Ground Clamp
Features
High-Tensile Spring to Grip Tight
Material
Brass
Characteristics
Brass, 4/0 Cable
Amps
600 A
Includes
Bush
Clamp Connection Material
Brass
Clamp Body Material
Brass
Clamp Type
Ground Clamp
Non-Conductive
Yes
Compatible Cable Gauge (Minimum)
1/0 AWG
Maximum Current
600 A
Compatible Cable Gauge (Maximum)
3/0 AWG
Maximum Jaw Opening
1 1/2 in
Cable Connection Type
Ball Point Screw
Compatible with Surface Type
Flat, Flat Plates, Pipe, Round
Screw Material
Zinc-Plated Steel

Description

Ground Clamp, Maximum Current 600 A, Compatible Cable Gauge (Maximum) 3/0 AWG, Compatible Cable Gauge (Minimum) 1/0 AWG, Maximum Jaw Opening 1 1/2 in, Throat Depth 4 3/8 in, Clamp Body Material Brass, Cable Connection Type Ball Point Screw, Clamp Connection Material Brass, Clamp Height 3 3/4 in, Clamp Type Ground Clamp, Compatible with Surface Type Flat, Flat Plates, Pipe, Round, Features High-Tensile Spring to Grip Tight, Non-Conductive Yes, Overall Height 3.8 in, Overall Length 8 in

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
