Zoro Select Carbide End Mill, 3in, GMKD12C4 GMKD12C4 - main

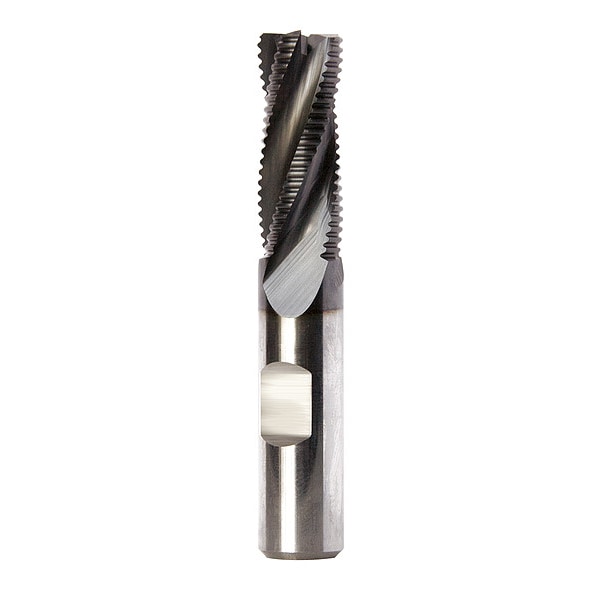

Carbide End Mill, 3in, GMKD12C4

  • Mfr # GMKD12C4

  • Zoro # G9444863

product price: $146.99
/ea
Free Shipping & Returns

Key Features

Number of Flutes
4
Overall Length
3 in
Shank Dia.
1/2 in
Length of Cut
1 1/4 in
End Mill Style
Corner-Chamfer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GMKD12C4
Zoro #
G9444863
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
3 in
Shank Dia.
1/2 in
Length of Cut
1 1/4 in
Milling Dia.
0.5 in
Dimension Type
Fractional Inch
Milling Diameter
1/2"

Details

Item
Roughing End Mill
Number of Flutes
4
End Mill Style
Corner-Chamfer
Single End/Double End
Single
Shank Type
Weldon
Cutting Direction
Right Hand
End Mill Application
Roughing
Helix Angle
Variable
Finish
GMX-35
List Number
GMKD
End Mill Cutting Type
Non-Center Cutting
End Mill Material
Carbide
Grade
C2 Micro Grain
Chamfer Angle
45 Degrees
Pitch
Coarse
Finish - Machining
GMS
Material - Machining
Carbide
Drilling Tool Configuration
Individual
Shank Type - Machining
Weldon Flat
Cutting Direction - Machining
Right Hand
Measurement System
Inch
Material Grade - Machining
C2 Micrograin
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium, Tool and Die Steel
Primary Material Application ISO Code
M, P, S
Series
Knuckledragger
Secondary Material Application
Aluminum, Brass, Bronze, Carbon Fiber, Cast Iron, Copper, Fiberglass, Graphite, Hardened Steel, Magnesium, Nickel, Plastic, Slate, Stainless Steel, Steel, Titanium, Tool and Die Steel, Wood
Flute Spacing
Variable
Secondary Material Application ISO Code
H, K, M, N, O, P, S
Flute Type
Spiral

Description

Roughing End Mill, 0.5 in Milling Dia., Carbide, GMS, Weldon Flat, Inch, 45 Degrees , 1 1/4 in
