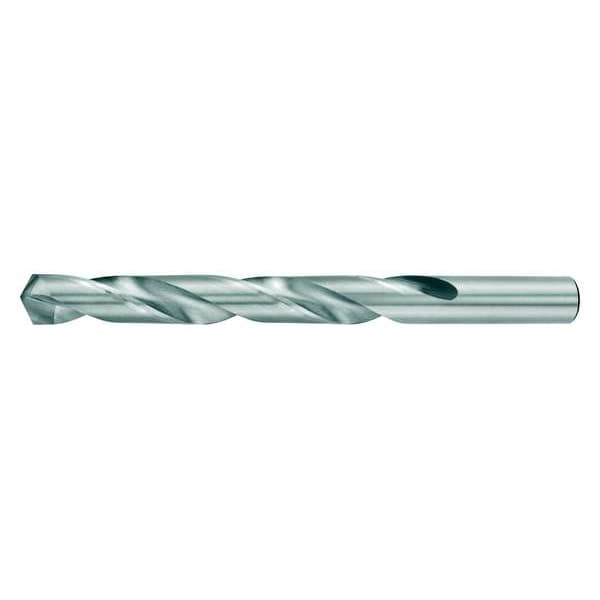

Carbide-Tipped 118 Deg. Jobber Length Drill Bit
- Mfr # 12002950
- Zoro # G0504178
product price:Â
$
19.99
/ea
Key Features
Overall Length
4 1/2 in
Drill Bit Point Angle
118 Degrees
Drill Bit Size
M
Number of Flutes
2
Shank Dia.
7.4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 12002950
- Zoro #
- G0504178
- UPC #
- -
- Country of Origin
- United States
- Item
- Jobber Length Drill Bit
- Drill Bit Point Angle
- 118 Degrees
- Number of Flutes
- 2
- Material - Machining
- Carbide Tipped
- Cutting Direction
- Right Hand
- Finish - Machining
- Bright (Uncoated)
- Shank Type - Machining
- Straight
- Drill Bit Grouping
- Drill Bit
- Decimal Equivalent
- 0.2950
- Standards
- Not Rated
- Coolant Fed
- Non-Coolant Through
- Helix Angle
- 30 Degrees
- Primary Material Application
- All Materials
- Primary Material Application ISO Code
- H, K, M, N, O, P, S
- Spiral Direction
- Right Hand
- Flute Type
- Spiral
- Drill Bit Point Type
- Cam Relieved Point
- Measurement System
- Letter
- Helix Angle - Maximum
- 30 Degrees
Dimensions
- Overall Length
- 4 1/2 in
- Drill Bit Size
- M
- Shank Dia.
- 7.4 mm
- Drill Bit Dimension Type
- Letter
- Depth:Dia. Ratio
- 9xD
- Flute Length
- 3 3/16 in
- Drilling Depth
- 2.6000"
- Shank Length
- 1 5/16 in
- Drill Diameter Tolerance
- +0.0000 in/-0.0010 in
- Drill Point Length
- 2.25mm
- Drill Length Class
- Jobber-Length
- Maximum Drilling Depth
- 3 3/16 in
- Wire Rope Length
- 4 1/2 in
- Length
- 4 1/2 in
Description
Jobber Length Drill Bit, Drill Bit Size M, Drill Bit Point Angle 118 Degrees , Carbide Tipped, Bright (Uncoated), Decimal Equivalent 0.2950, Letter, Drill Bit Point Type Cam Relieved Point, Non-Coolant Through
