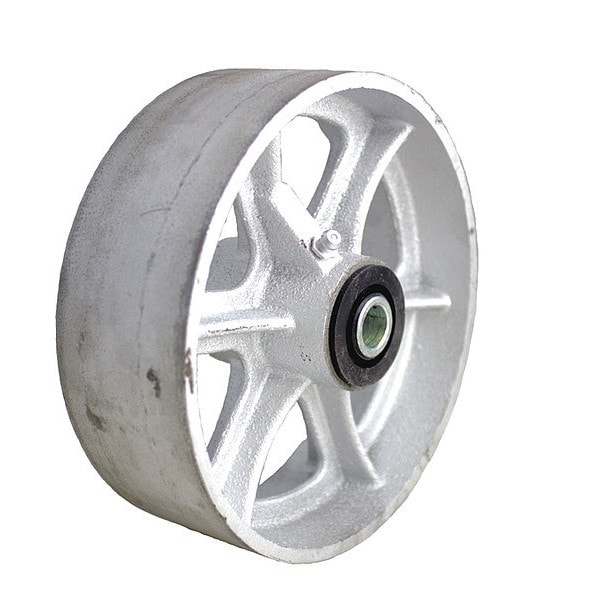

Zoro Select Caster Wheel, 1400 lb. Load Rating P-C-080x020/050R - main

Caster Wheel, 1400 lb. Load Rating

  • Mfr # P-C-080x020/050R

  • Zoro # G5574602

product price: $29.19
/ea

Key Features

Wheel Dia.
8 in
Wheel Width
2 in
Fits Axle Dia.
1/2 in
Caster Load Rating Range
Medium-Heavy Duty
Load Rating
1,400 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P-C-080x020/050R
Zoro #
G5574602
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Fits Axle Dia.
1/2 in
Hub Length
2 3/16 in
Bore Dia.
1/2"
For Axle Size
1/2 in
Hub Width
2-3/16 in

Details

Caster Load Rating Range
Medium-Heavy Duty
Load Rating
1,400 lb
Caster Core Material
Cast Iron
Caster Wheel/Tread Material
Cast Iron
Wheel Color
Silver
Caster Wheel Shape
Standard
Spanner Bushing
Included
Core Color
Gray
Non-Marking
No
Includes
Spanner Bushing
Item
Wheel
Standards
RoHS, ICWM
Resistant To
High Chemical Resistance To Many Aggressive Substances
Durometer
145 HB
Caster Temp. Range Available
Yes
Caster Temp. Range
Up To 800 Degrees F
System of Measurement
Inch
Caster Wheel Bearings
Roller
Features
High Temperature
Wheel/Tread Material
Iron
Wheel Core Material
Cast Iron
includes Spanner Bushing
Yes
Tread Shape
Standard
Operating Temperature Range
-40 Degrees to 800 Degrees F
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Extra Hard
Wheel/Tread Color
Silver
Wheel/Tread Hardness
180-220 HB
Includes Spanner Bushing
Included
Series
P-C Series
Number of Wheels
1
Application
Retail, Industrial, Commercial
Tread Color
Silver
Caster Product Group
Wheels
Tread
Standard
Extended Lead
No
Replacement Wheel
Mfr. No. P-C-080x020/050R
Includes Thread Guards
No
Load Capacity
1400 lb
ESD Conductive
No
Compatible with Series
Pegasus 21, Pegasus 21F, Pegasus 23, Pegasus 24, Pegasus 25
Compatible Manufacturer Model Number
915749
Operating Temperature - Maximum
800 Degrees F
Wheel Hardness Rating
145 BHN
Operating Temperature - Minimum
-40 Degrees F

Description

Caster Wheel, 1,400 lb Load Rating, 1,000 to 2,999 lb Load Rating Range, 8 in Wheel Dia., 2 in Wheel Width, Iron Wheel/Tread Material, Extra Hard, 190-230 BHN, Roller, Standard Tread Shape, 1/2 in For Axle Size, Included Includes Spanner Bushing, Iron Wheel Core Material, Yes Non-Marking, 2 3/16 in Hub Length
