Zoro Select

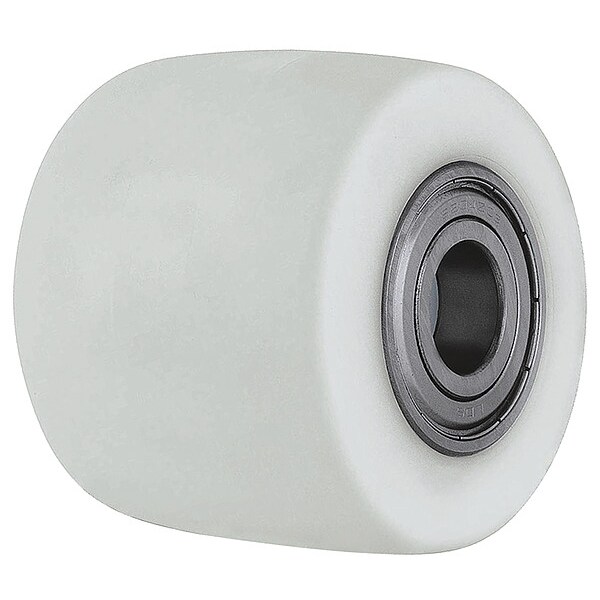

Caster Wheel, 1760 lb. Ld Rating, Wt Wheel

Zoro Select Caster Wheel, 1760 lb. Ld Rating, Wt Wheel HPO 85X75/17-78K
Hover or click to zoom Tap to zoom
$39.09
  • Wheel Dia.: 85 mm
  • Wheel Width: 75 mm
  • Fits Axle Dia.: 17 mm
  • Caster Load Rating Range: Heavy Duty
  • Load Rating Range: 420-1100 kg
  • Load Rating: 1760 lb
  • Wheel/Tread Hardness Rating: Hard
  • Caster Core Material: Nylon
See full product details
Orders over $75 ship free.

Total: $39.09

Zoro Select #HPO 85X75/17-78K Specifications

  • Wheel Dia.: 85 mm
  • Wheel Width: 75 mm
  • Fits Axle Dia.: 17 mm
  • Caster Load Rating Range: Heavy Duty
  • Load Rating Range: 420-1100 kg
  • Load Rating: 1760 lb
  • Wheel/Tread Hardness Rating: Hard
  • Caster Core Material: Nylon
  • Wheel/Tread Material: Nylon
  • Caster Wheel/Tread Material: Nylon
  • Wheel Core Material: Nylon
  • Hub Length: 3 5/64 in
  • Wheel Bearing Type: Precision Ball
  • Wheel Color: White
  • For Axle Size: 11/16 in
  • Caster Wheel Shape: Standard
  • Spanner Bushing: Not Included
  • Core Color: White
  • Non-Marking: Yes
  • Features: Reduces Push/Pull Forces
  • Caster Temp. Range: -25 Degrees To 80 Degrees C
  • System of Measurement: Metric
  • Durometer: 70 Shore D
  • Item: Rollers For Pallet Trucks
  • Caster Wheel Bearings: Precision Ball
  • ESD Conductive: No
  • Bore Dia.: 43/64"
  • Standards: RoHS, ICWM
  • Resistant To: High Chemical Resistance To Many Aggressive Substances
  • Caster Temp. Range Available: Yes
  • Replacement For: European Forklifts
  • Operating Temperature Range: -20 Degrees to 180 Degrees F
  • Tread Shape: Standard
  • includes Spanner Bushing: No
  • Wheel/Tread Hardness: 70 Shore D
  • Wheel/Tread Color: White
  • Includes Spanner Bushing: Not Included
  • Overall Width: 2-15/16"
  • Material: Nylon
  • Load Capacity: 800 kg
  • Overall Height: 3-3/8 in
  • Color: White
  • For Use With: Pallet Trucks
  • Tread: Standard
  • Number of Wheels: 1
  • Tread Color: White
  • Includes Thread Guards: No
  • Extended Lead: No
  • Application: Roller For Pallet Trucks
  • Series: HPO Series
  • Caster Product Group: Wheels
  • Replacement Wheel: Mfr. No. HPO 85X75/17-78K
  • Hub Width: 78 mm
  • Country of Origin (subject to change): Germany

Description

Ergonomic Nylon Tread Wheel, 1,760 lb Load Rating, 1,000 to 2,999 lb Load Rating Range, 3 5/16 in Wheel Dia., 3 in Wheel Width, Nylon Wheel/Tread Material, Hard, 70 Shore D, Precision Ball, Standard Tread Shape, 11/16 in For Axle Size, Not Included Includes Spanner Bushing, Nylon Wheel Core Material, Yes Non-Marking, 3 5/64 in Hub Length
