  11. Caster Wheel, 2200 lb. Ld Rating, Gy Wheel

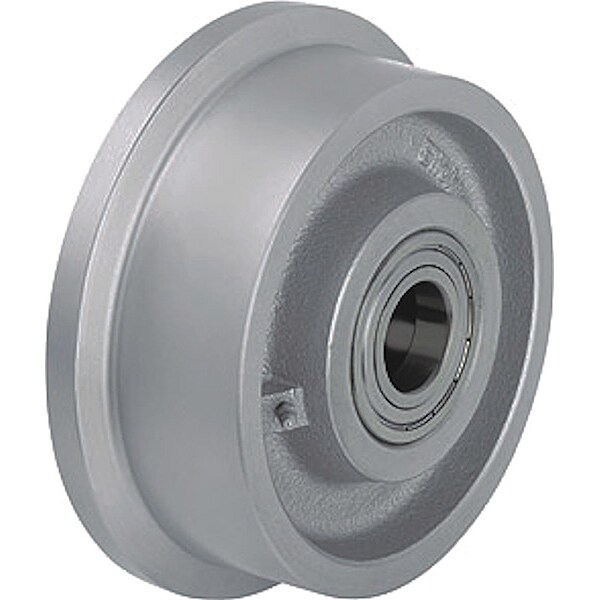

Zoro Select Caster Wheel, 2200 lb. Ld Rating, Gy Wheel SPK 150K - main

Caster Wheel, 2200 lb. Ld Rating, Gy Wheel

  • Mfr # SPK 150K

  • Zoro # G8518321

product price: $86.55
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
6 in
Wheel Width
1-25/32 in
Fits Axle Dia.
20 mm
Caster Load Rating Range
Heavy Duty
Load Rating
2200 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPK 150K
Zoro #
G8518321
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6 in
Wheel Width
1-25/32 in
Fits Axle Dia.
20 mm
Hub Length
2 in
Bore Dia.
25/32"
Groove Width
3/8 in
For Axle Size
3/4 in
Hub Width
2-1/32 in

Details

Caster Load Rating Range
Heavy Duty
Load Rating
2200 lb
Caster Core Material
Cast Iron
Caster Wheel/Tread Material
Cast Iron
Wheel Color
Gray
Caster Wheel Shape
Single Flange
Spanner Bushing
Included
Core Color
Gray
Non-Marking
No
Includes
Complete Wheel with Bearings
Item
Single Flanged Wheel
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Durometer
180-220 BHN
Features
Railway Rail Compatible
Standards
RoHS, ICWM
Replacement For
Blickle BH, BO, and BS Series
Caster Temp. Range
-150 Degrees To 1110 Degrees F
Caster Temp. Range Available
Yes
ESD Conductive
No
Caster Wheel Bearings
Precision Ball
Tread Shape
Single Flange
includes Spanner Bushing
Not Included
Operating Temperature Range
-20 Degrees to 250 Degrees F
Wheel Core Material
Cast Iron
Wheel Bearing Type
Precision Ball
Wheel/Tread Hardness
180-220 HB
Wheel/Tread Hardness Rating
Extra Hard
Wheel/Tread Material
Iron
Includes Spanner Bushing
No
Tread
Flanged
Tread Color
Gray
Application
Retail, Industrial, Commercial
Caster Product Group
Wheels
Replacement Wheel
Mfr. No. SPK 150K
Number of Wheels
1
Series
P-SPK Series
Load Capacity
2200 lb
Extended Lead
No
Includes Thread Guards
No
Wheel Hardness Rating
180 HB
Load Capacity - Maximum
2,200 lb
Operating Temperature - Minimum
-20 Degrees F
Compatible with Series
BH Series, BO Series, BS Series
Operating Temperature - Maximum
250 Degrees F

Description

Track Wheel, 2200 lb Load Rating, 1000 to 2999 lb, 5 7/8 in Wheel Dia., 1 7/8 in Wheel Width, Iron Wheel/Tread Material, Extra Hard Wheel/Tread Hardness Rating, 190-230 BHN Wheel/Tread Hardness, Precision Ball Wheel Bearing Type, Single Flange Tread Shape, For Axle Size 3/4 in, 3/8 in Groove Width, No Includes Spanner Bushing, Iron Wheel Core Material, Yes Non-Marking, 2 in Hub Length
