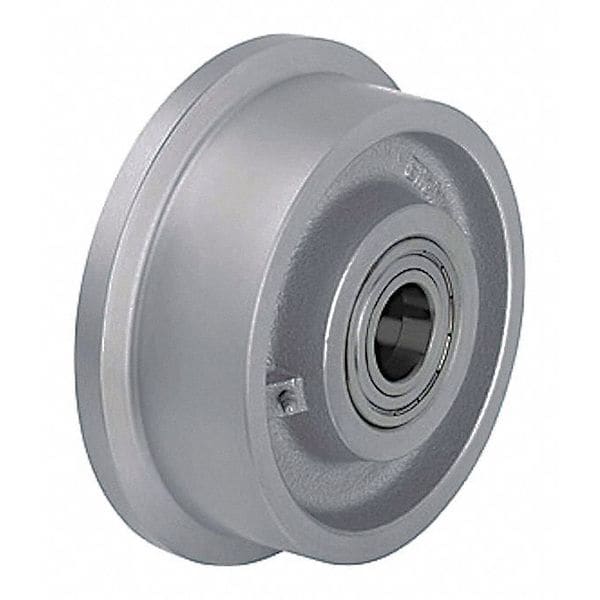

Caster Wheel, 2645 lb. Ld Rating, Gy Wheel

Mfr # SPK 180K
Zoro # G9463769

125.99

Free Shipping & Returns

Key Features

Wheel Dia.

7 in

Wheel Width

1-13/16 in

Fits Axle Dia.

20 mm

Caster Load Rating Range

Heavy Duty

Load Rating

2645 lb

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: SPK 180K
Zoro #: G9463769
UPC #: -
Country of Origin: Germany

Dimensions

Wheel Dia.: 7 in
Wheel Width: 1-13/16 in
Fits Axle Dia.: 20 mm
Hub Length: 2 in
Bore Dia.: 25/32"
Groove Width: 3/8 in
For Axle Size: 3/4 in
Hub Width: 2-1/32 in

Details

Caster Load Rating Range: Heavy Duty
Load Rating: 2645 lb
Caster Core Material: Cast Iron
Caster Wheel/Tread Material: Cast Iron
Wheel Color: Gray
Caster Wheel Shape: Single Flange
Spanner Bushing: Included
Core Color: Gray
Non-Marking: No
Item: Single Flanged Wheel
Resistant To: High Chemical Resistance To Many Aggressive Substances
Caster Temp. Range: -150 Degrees To 1110 Degrees F
System of Measurement: Inch
Caster Wheel Bearings: Precision Ball
ESD Conductive: Yes
Durometer: 180 to 220 BHN
Features: Railway Rail Compatible
Standards: DIN EN 12533, ICWM
Caster Temp. Range Available: Yes
includes Spanner Bushing: Not Included
Wheel Core Material: Iron
Operating Temperature Range: -20 Degrees to 250 Degrees F
Tread Shape: Single Flange
Wheel/Tread Hardness: 180-220 HB
Wheel Bearing Type: Precision Ball
Wheel/Tread Hardness Rating: Extra Hard
Wheel/Tread Material: Iron
Includes Spanner Bushing: No
Caster Product Group: Wheels
Number of Wheels: 1
Tread Color: Gray
Includes Thread Guards: No
Application: Retail, Industrial, Commercial
Tread: Flanged
Load Capacity: 2645 lb
Series: P-SPK Series
Extended Lead: No
Replacement Wheel: Mfr. No. SPK 180K
Wheel Hardness Rating: 180 HB
Operating Temperature - Maximum: 250 Degrees F
Operating Temperature - Minimum: -20 Degrees F
Load Capacity - Maximum: 2,645 lb

Description

Track Wheel, 2645 lb Load Rating, 1000 to 2999 lb, 7 1/8 in Wheel Dia., 1 7/8 in Wheel Width, Iron Wheel/Tread Material, Extra Hard Wheel/Tread Hardness Rating, 190-230 BHN Wheel/Tread Hardness, Precision Ball Wheel Bearing Type, Single Flange Tread Shape, For Axle Size 3/4 in, 3/8 in Groove Width, No Includes Spanner Bushing, Iron Wheel Core Material, Yes Non-Marking, 2 in Hub Length
