  11. Caster Wheel, 300 lb. Load Rating

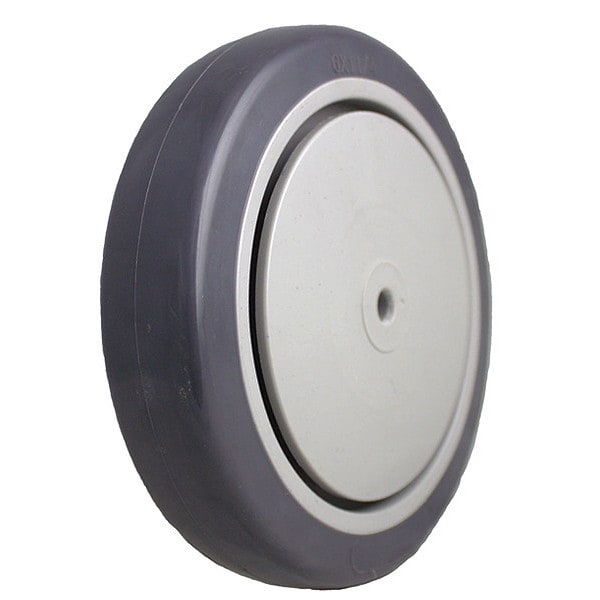

Zoro Select Caster Wheel, 300 lb. Load Rating P-UP-050X013/031K - main

Caster Wheel, 300 lb. Load Rating

  • Mfr # P-UP-050X013/031K

  • Zoro # G5604459

product price: $13.75
/ea

Key Features

Wheel Dia.
5 in
Wheel Width
1-1/4 in
Fits Axle Dia.
5/16 in
Caster Load Rating Range
Light-Medium Duty
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P-UP-050X013/031K
Zoro #
G5604459
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1-1/4 in
Fits Axle Dia.
5/16 in
Hub Length
1 7/16 in
Bore Dia.
5/16"
For Axle Size
5/16 in
Hub Width
1-7/16 in

Details

Caster Load Rating Range
Light-Medium Duty
Load Rating
220 lb
Caster Core Material
Polypropylene
Caster Wheel/Tread Material
Polyurethane
Wheel Color
Gray
Caster Wheel Shape
Standard
Spanner Bushing
Included
Core Color
Gray
Non-Marking
Yes
Includes
Thread Guards
Item
Polyurethane Tread On Polypropylene Hub Wheel
Caster Wheel Bearings
Precision Ball
Caster Temp. Range
-15 Degrees To 160 Degrees F
Replacement For
Blickle Products
Caster Temp. Range Available
Yes
System of Measurement
Inch
Features
Floor Protective
Resistant To
High Chemical Resistance To Many Aggressive Substances
Durometer
92 Shore A
Standards
RoHS, ICWM
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Operating Temperature Range
-40 Degrees to 180 Degrees F
Wheel Core Material
Polypropylene
includes Spanner Bushing
No
Wheel/Tread Hardness
50-60 Shore D
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Gray
Wheel/Tread Hardness Rating
Hard
Includes Spanner Bushing
Not Included
Series
P-UP Series
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Includes Thread Guards
Yes
Tread Color
Gray
ESD Conductive
No
Number of Wheels
1
Load Capacity
220 lb
Caster Product Group
Wheels
Extended Lead
No
Replacement Wheel
Mfr. No. P-UP-050X013/031K
Operating Temperature - Maximum
180 Degrees F
Compatible with Series
Pegasus 12H, Pegasus 14, Pegasus 14X, Pegasus 15, Pegasus 15X, Pegasus 16, Pegasus 17
Wheel Hardness Rating
55 Shore D
Operating Temperature - Minimum
-40 Degrees F
Compatible Manufacturer Model Number
915643

Description

Caster Wheel, 220 lb Load Rating, 0 to 299 lb Load Rating Range, 5 in Wheel Dia., 1 1/4 in Wheel Width, Polyurethane Wheel/Tread Material, Hard, 50-60 Shore D, Precision Ball, Standard Tread Shape, 5/16 in For Axle Size, Not Included Includes Spanner Bushing, Plastic Wheel Core Material, Yes Non-Marking, 1 7/16 in Hub Length
