  11. Caster Wheel, Rubber, 4 in. Dia., 400 lb.

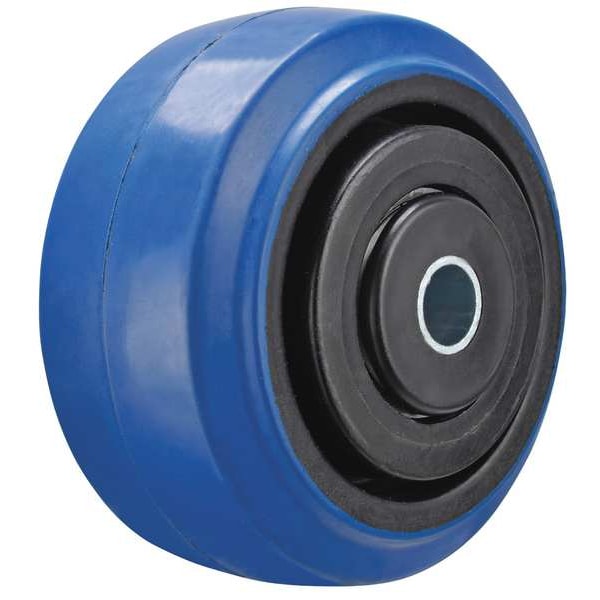

Zoro Select Caster Wheel, Rubber, 4 in. Dia., 400 lb. P-EP-040X020/050K-001 - main

Caster Wheel, Rubber, 4 in. Dia., 400 lb.

  • Mfr # P-EP-040X020/050K-001

  • Zoro # G9087863

product price: $14.39
/ea

Key Features

Caster Load Rating Range
Light Duty
Hub Length
2 3/16 in
Fits Axle Dia.
1/2 in
Tread
Standard
Caster Wheel/Tread Material
Elastic Rubber
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P-EP-040X020/050K-001
Zoro #
G9087863
UPC #
-
Country of Origin
China

Dimensions

Hub Length
2 3/16 in
Fits Axle Dia.
1/2 in
Wheel Dia.
4 in
Wheel Width
2 in
Bore Dia.
1/2"
For Axle Size
1/2 in
Hub Width
2-3/16 in

Details

Item
Elastic Rubber Tread On Nylon Hub Wheel
Caster Load Rating Range
Light Duty
Tread
Standard
Caster Wheel/Tread Material
Elastic Rubber
Load Rating
400 lb
Non-Marking
Yes
Application
Retail, Industrial, Commercial
Tread Color
Blue
Core Color
Gray
Spanner Bushing
Included
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Wheel Bearings
Precision Ball
Caster Temp. Range Available
Yes
Durometer
70 Shore A
Caster Temp. Range
-4 Degrees To 140 Degrees F
Caster Core Material
Nylon
Replacement For
29XU73
Features
High Tensile Rubber
Caster Wheel Shape
Standard
Wheel Color
Blue
Includes
(2) Top Hat Bushings
Operating Temperature Range
-40 Degrees to 200 Degrees F
includes Spanner Bushing
No
Wheel Core Material
Polypropylene
Tread Shape
Standard
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Hard
Wheel/Tread Hardness
70 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Blue
Includes Spanner Bushing
Not Included
Includes Thread Guards
No
Load Capacity
300 lb
Replacement Wheel
Mfr. No. P-EP-040X020/050K-001
Caster Product Group
Wheels
Standards
RoHS, ICWM
Series
P-EP Series
ESD Conductive
No
Number of Wheels
1
Extended Lead
No
System of Measurement
Inch
Compatible with Series
Pegasus 21, Pegasus 21F, Pegasus 23, Pegasus 24, Pegasus 25
Operating Temperature - Maximum
200 Degrees F
Wheel Hardness Rating
65 Shore A
Operating Temperature - Minimum
-40 Degrees F

Description

Caster Wheel, 400 lb Load Rating, 300 to 999 lb Load Rating Range, 4 in Wheel Dia., 2 in Wheel Width, Rubber Wheel/Tread Material, Hard, 50-60 Shore D, Precision Ball, Standard Tread Shape, 1/2 in For Axle Size, Not Included Includes Spanner Bushing, Nylon Wheel Core Material, Yes Non-Marking, 2 3/16 in Hub Length
