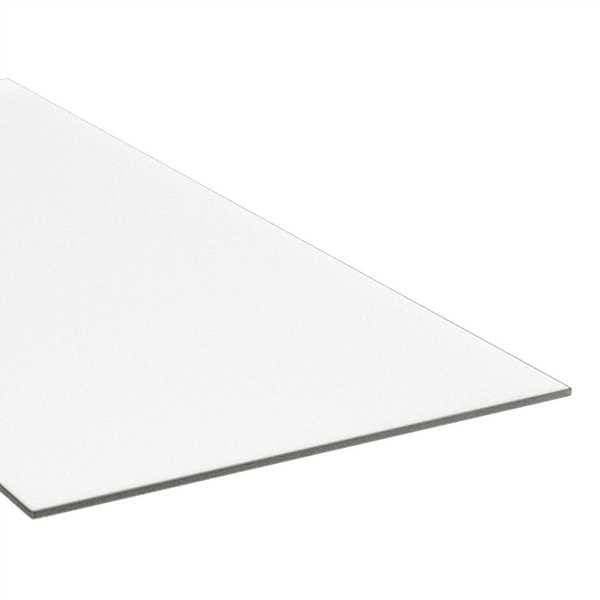

Colorless Polycarbonate Film Stock 36" L x 24" W x 0.005" Thick

  • Mfr # BULK-PF-PC-76

  • Zoro # G1331635


product price: $5.79
/ea

Key Features

Plastic Material
Polycarbonate
Plastic Thickness
0.005"
Plastic Width
24"
Plastic Length
36"
Plastic Color
Clear
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BULK-PF-PC-76
Zoro #
G1331635
UPC #
-
Country of Origin
China

Dimensions

Plastic Thickness
0.005"
Plastic Width
24"
Plastic Length
36"
Length Tolerance
+/-0.250 in
Width Tolerance
+/-0.25 in
Thickness
0.005"
Length
36"
Width
24"
Nominal Size
24 in W x 36 in L
Plastic Length Tolerance
+/-0.250 in
Plastic Width Tolerance
+/-0.25 in

Details

Item
Film Stock
Plastic Material
Polycarbonate
Plastic Color
Clear
Max. Temp. (F)
270 Degrees F
Min. Temp. (F)
-211 Degrees F
Color
Colorless
Material Type
Standard Grade
Plastic Properties
Impact Resistant, Transparent
Tensile Strength
9,000 psi
Material Color Family
Clear
Plastic Grouping
Film Stock
Operating Temp. Range
-211 Degrees to 270 Degrees F
Thickness Tolerance
+/-10%
Material
Polycarbonate
Backing Type
No Backing
Wear Factor
Fair
Plastic Hardness Rating
Hard
Water Absorption
0.35 %
Grade
Standard
Temperature Range
-211 Degrees to 270 Degrees F
Friction Rating
Not Slippery
Tensile Strength Rating
Good
Water Absorption Rating
Poor
Corrosion and Chemical Resistance
Fair
Plastic Thickness Tolerance
+/-10%
Shape
Rectangle
UV Resistant
No
Plastic Clarity
Clear
Maximum Temperature
270 Degrees F
Impact Strength Rating
Excellent
Machinability
70 %
Minimum Temperature
-211 Degrees F
Impact Strength
23 ft-lb/in
Standards
Not Rated
Plastic Density
0.043 lb/cu in
Friction Coefficient
0.53
Dielectric Strength
Not Rated
Static-Resistant
Not Static-Resistant
Metal Detectable
Not Metal Detectable
Elongation
100 %
Coefficient of Thermal Expansion
Not Rated
Flexural Modulus
Not Rated
Weight
1.69 lb
Product Form
Sheet
Wear Rate
2.07 x 10^-13 cu in-min/ft-lb-hr
Product Type
Plastic Film
Scratch-Resistant
Not Scratch-Resistant
FDA Compliance
Not FDA Compliant
Rockwell Hardness
115 HRR
Light Transmission
Not Rated
UV-Resistant
Not UV-Resistant
Shore Hardness
85 Shore D

Description

The ZORO SELECT - BULK-PF-PC-76 is a Film Stock plastic sheet made from Polycarbonate material. This product is typically used in the industrial sector due to its versatility, durability and flexibility. It can be cut and shaped into various forms to meet specific needs. The film stock has a standard grade classification indicating its unique properties suitable for particular applications.

  • Backing Type: Plain backing type means it does not have an adhesive surface but may adhere to other surfaces or materials under certain conditions.
  • Corrosion and Chemical Resistance: With a degree of resistance, this plastic sheet may resist damage or degradation when exposed to corrosive substances, chemicals, or harsh conditions within specified limits.
  • Friction Rating: A not slippery rating suggests potential for stability and control during movement-heavy applications within the product's specifications.
  • Impact Strength Rating: An excellent impact strength rating suggests that the plastic sheet might be able to withstand high forces without breaking under specified usage scenarios. It does not guarantee suitability for all heavy-duty uses.
  • Machinability: A fair machinability rating means that this plastic sheet could potentially be cut, shaped or finished using appropriate industrial tools within its design limitations. Damage is possible if used outside these parameters.
  • Temperature Range: Rated for operation within temperatures ranging from -211 Degrees F up to 270 Degrees F. Performance may vary based on operating conditions.
  • Tensile Strength: With a rated tensile strength of 9,000 psi under standard test conditions; actual performance may vary depending on specific usage situations."
