  5. Commercial Compound Gauge, 30 to 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

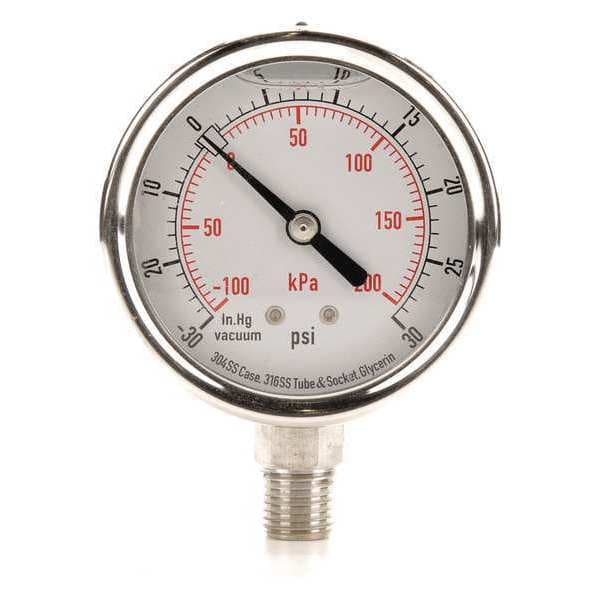

Zoro Select Commercial Compound Gauge, 30 to 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 4CFH1 - main

Commercial Compound Gauge, 30 to 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4CFH1

  • Zoro # G0041641

product price:  $28.79
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CFH1
Zoro #
G0041641
UPC #
190735501917
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Commercial Compound Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
30 to 0 to 30
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Filled With
Glycerin
Smallest Graduation
1 psi, 2 in Hg
Gauge Application
Corrosion-Resistant Case
Gauge Primary Range Smallest Graduation
2/1
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Case Color
Silver
Gauge Secondary Range Values
-100 to 0 to 200
Calibration Certificate Included
No
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Dial Color
White
Includes Mounting Hardware
No
Non-Sparking
No
Secondary Pressure Range
-100 to 0 to 200 kPa
Accuracy Scale
Mid-Scale
Freeze Resistant Movement
No
Sensor Material
316 Stainless Steel
Removable Bezel
No
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Process Connection Gender
Male
Includes Vent Plug
No
Vibration Resistance
Liquid-Filled
Gauge Case Liquid
Glycerin
Scale Type
Dual
Field Fillable
No
Pressure Range Type
Compound
Pressure Gauge Type
Commercial Pressure Gauge
Cleaned for Oxygen Service
No
Dry Dampening Feature
None
Secondary Scale Units
kPa
Includes Calibration Certificate
No
Primary Scale Minor Graduations
1, 2
Bezel Material
Crimped Stainless Steel
Maximum Pressure
30
Operating Temperature Range
-40 Degrees to 140 Degrees F
Operating Temperature - Maximum
140 Degrees F
Secondary Scale Vacuum Measurement - Minimum
-100 kPa
Secondary Scale Pressure Measurement - Maximum
200 kPa
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Maximum
0 kPa
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Maximum
30 psi
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
Glycerin
Primary Scale Vacuum Measurement - Maximum
30 in Hg

Description

Commercial Compound Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
