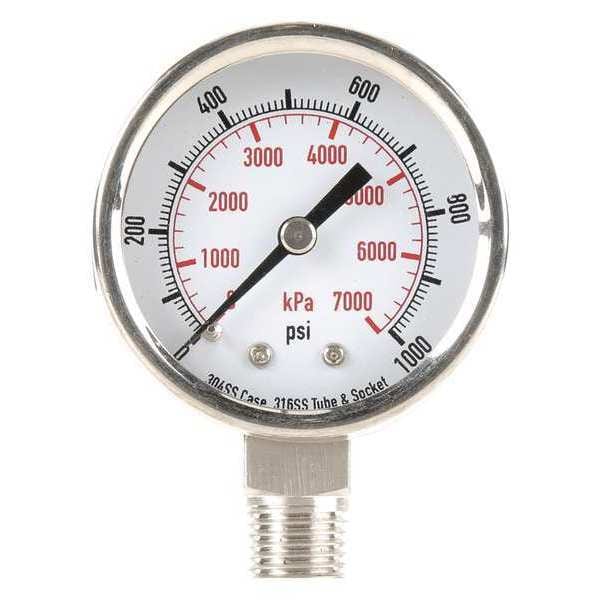

Commercial Pressure Gauge, 0 to 1,000 psi, 2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4FML4

  • Zoro # G0040896

product price:  $12.55
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4FML4
Zoro #
G0040896
UPC #
190735508473
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 1,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
Corrosion-Resistant Case
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 7000
Gauge Primary Range Smallest Graduation
10
Smallest Graduation
10 psi
Case Color
Silver
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Dial Color
White
Includes Vent Plug
No
Non-Sparking
No
Sensor Material
316 Stainless Steel
Cleaned for Oxygen Service
No
Secondary Pressure Range
0 to 7,000
Dry Dampening Feature
None
Primary Scale Minor Graduations
10
Pressure Gauge Type
Commercial Pressure Gauge
Scale Type
Dual
Removable Bezel
No
Includes Mounting Hardware
No
Secondary Scale Units
kPa
Bezel Material
Crimped Stainless Steel
Pressure Range Type
Pressure
Process Connection Gender
Male
Field Fillable
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Accuracy Scale
Mid-Scale
Gauge Case Liquid
None
Vibration Resistance
None
Includes Calibration Certificate
No
Freeze Resistant Movement
No
Maximum Pressure
1,000 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Maximum
1,000 psi
Secondary Scale Pressure Measurement - Maximum
7,000 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
Operating Temperature - Maximum
150 Degrees F

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
