  5. Commercial Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Center Back Location

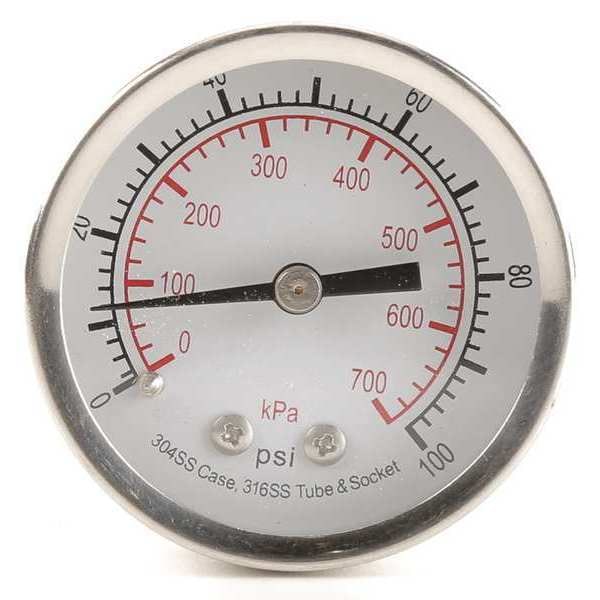

Zoro Select Commercial Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Center Back Location 4FMU9 - main

Commercial Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4FMU9

  • Zoro # G0040975

product price:  $16.25
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4FMU9
Zoro #
G0040975
UPC #
190735508978
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Silver
Smallest Graduation
2 psi
Gauge Primary Range Smallest Graduation
2
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Calibration Certificate Included
No
Gauge Application
Corrosion-Resistant Case
Gauge Secondary Range Values
0 to 700
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Secondary Pressure Range
0 to 700
Includes Vent Plug
No
Secondary Scale Units
kPa
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Primary Scale Minor Graduations
2
Cleaned for Oxygen Service
No
Dial Color
White
Includes Mounting Hardware
No
Vibration Resistance
None
Accuracy Scale
Mid-Scale
Includes Calibration Certificate
No
Freeze Resistant Movement
No
Scale Type
Dual
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Field Fillable
No
Process Connection Gender
Male
Dry Dampening Feature
None
Bezel Material
Crimped Stainless Steel
Non-Sparking
No
Sensor Material
316 Stainless Steel
Removable Bezel
No
Gauge Case Liquid
None
Maximum Pressure
100 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Nominal Dial Size 2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material 316 Stainless Steel, Socket Material 316 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type General Purpose Dial Pressure Gauge
