  5. Commercial Pressure Gauge, 0 to 150 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location
Zoro Select Commercial Pressure Gauge, 0 to 150 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 4CFW4 - main

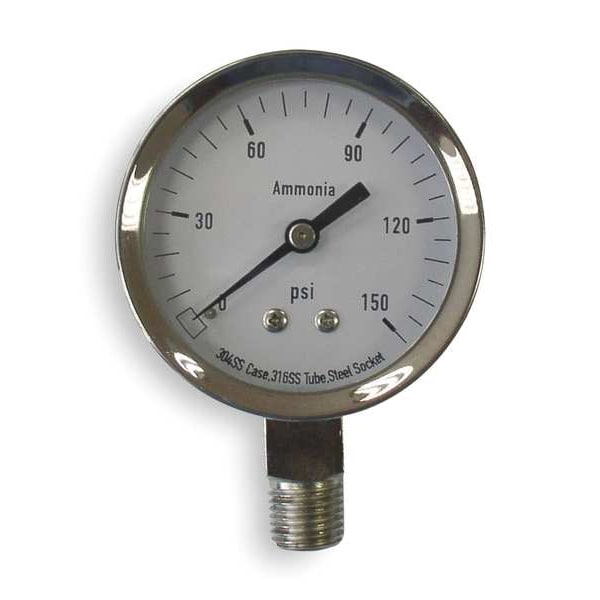

Commercial Pressure Gauge, 0 to 150 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4CFW4

  • Zoro # G1311712

product price:  $14.19
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CFW4
Zoro #
G1311712
UPC #
190735502754
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Agriculture
Gauge Case Material
304 Stainless Steel
Lens Material
Glass
Primary Pressure Range
0 to 150
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Silver
Gauge Primary Range Smallest Graduation
5
Smallest Graduation
5 psi
Gauge Application
Agricultural Ammonia
Calibration Certificate Included
No
Socket Material
Steel
Case Material
304 Stainless Steel
Connection Type
MNPT
Non-Sparking
No
Cleaned for Oxygen Service
No
Includes Calibration Certificate
No
Field Fillable
No
Accuracy Scale
Mid-Scale
Freeze Resistant Movement
No
Process Connection Gender
Male
Scale Type
Single
Primary Scale Minor Graduations
1, 2
Bezel Material
Screw-fixed Stainless Steel
Includes Mounting Hardware
No
Sensor Material
316 Stainless Steel
Includes Vent Plug
No
Dry Dampening Feature
None
Gauge Case Liquid
None
Vibration Resistance
None
Dial Color
White
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Pressure Gauge Type
Commercial Pressure Gauge
Removable Bezel
No
Maximum Pressure
150 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
Primary Scale Pressure Measurement - Maximum
150 psi
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 150, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
