  5. Commercial Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/4 in NPT, Bottom Location

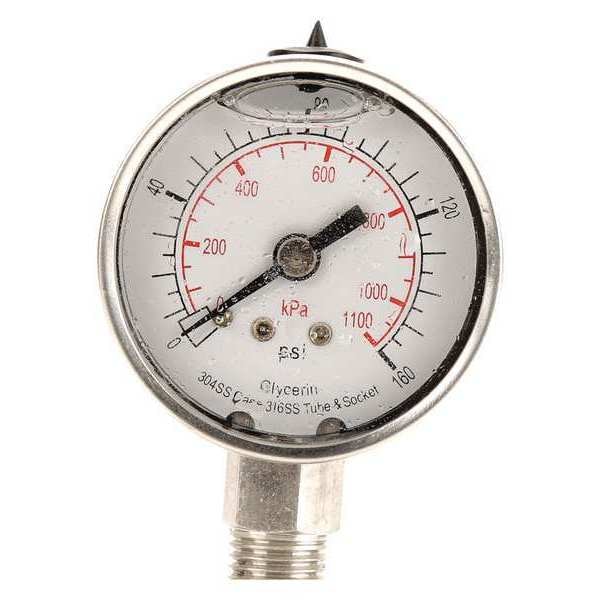

Zoro Select Commercial Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/4 in NPT, Bottom Location 4CFF9 - main

Commercial Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4CFF9

  • Zoro # G0041124

product price:  $25.85
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CFF9
Zoro #
G0041124
UPC #
190735501818
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
2 psi
Gauge Filled With
Glycerin
Case Color
Silver
Gauge Primary Range Smallest Graduation
2
Gauge Secondary Range Values
0 to 1100
Calibration Certificate Included
No
Gauge Application
Corrosion-Resistant Case
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Connection Type
MNPT
Wetted Materials
Stainless Steel
Includes Calibration Certificate
No
Cleaned for Oxygen Service
No
Field Fillable
No
Bezel Material
Crimped Stainless Steel
Removable Bezel
No
Freeze Resistant Movement
No
Dry Dampening Feature
None
Includes Mounting Hardware
No
Includes Vent Plug
No
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Non-Sparking
No
Secondary Scale Units
kPa
Scale Type
Dual
Gauge Case Liquid
Glycerin
Vibration Resistance
Liquid-Filled
Primary Scale Minor Graduations
1, 2
Pressure Gauge Type
Commercial Pressure Gauge
Sensor Material
316 Stainless Steel
Process Connection Gender
Male
Accuracy Scale
Mid-Scale
Pressure Range Type
Pressure
Secondary Pressure Range
0 to 1,100 kPa
Dial Color
White
Maximum Pressure
160 psi
Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Pressure Measurement - Maximum
160 psi
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
1,100 kPa
Operating Temperature - Maximum
140 Degrees F
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
