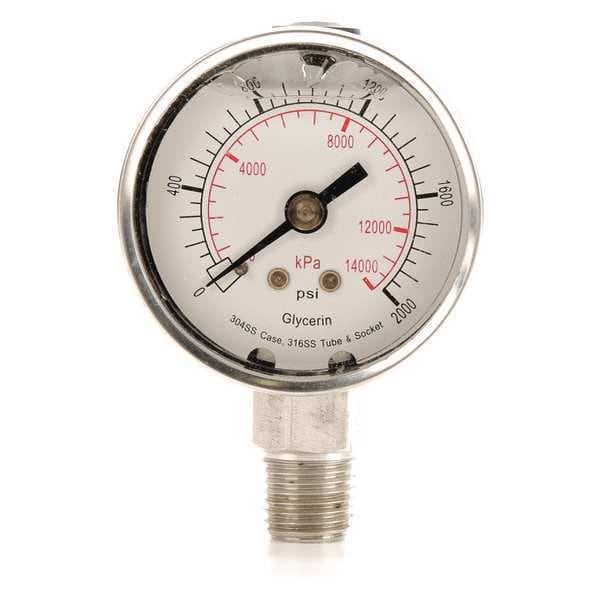

Zoro Select Commercial Pressure Gauge, 0 to 2,000 psi, 2 in Dial, 1/4 in NPT, Bottom Location 4CFG6 - main
Shop ZORO SELECT

Commercial Pressure Gauge, 0 to 2,000 psi, 2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4CFG6

  • Zoro # G0041185

product price:  $16.69
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CFG6
Zoro #
G0041185
UPC #
190735501870
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 2,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Silver
Gauge Application
Corrosion-Resistant Case
Calibration Certificate Included
No
Gauge Filled With
Glycerin
Smallest Graduation
20 psi
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Gauge Primary Range Smallest Graduation
20
Gauge Secondary Range Values
0 to 14,000
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Connection Type
MNPT
Wetted Materials
Stainless Steel
Scale Type
Dual
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Pressure Range Type
Pressure
Includes Vent Plug
No
Accuracy Scale
Mid-Scale
Secondary Scale Units
kPa
Freeze Resistant Movement
No
Field Fillable
No
Non-Sparking
No
Sensor Material
316 Stainless Steel
Cleaned for Oxygen Service
No
Bezel Material
Crimped Stainless Steel
Secondary Pressure Range
0 to 14,000 kPa
Includes Calibration Certificate
No
Process Connection Gender
Male
Primary Scale Minor Graduations
1, 2
Dry Dampening Feature
None
Vibration Resistance
Liquid-Filled
Pressure Gauge Type
Commercial Pressure Gauge
Removable Bezel
No
Includes Mounting Hardware
No
Dial Color
White
Gauge Case Liquid
Glycerin
Maximum Pressure
2000
Operating Temperature Range
-40 Degrees to 140 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
2,000 psi
Operating Temperature - Maximum
140 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
Glycerin
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
14,000 kPa

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 2,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
