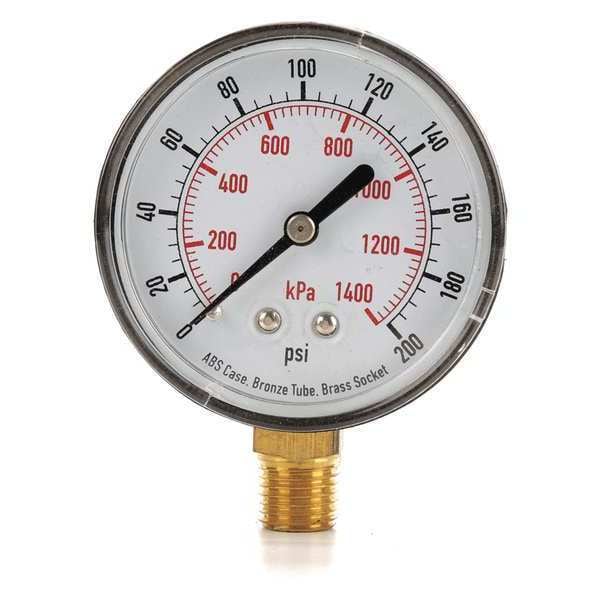

Commercial Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4FLW2

  • Zoro # G0038945

product price:
$
6.49
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4FLW2
Zoro #
G0038945
UPC #
190735507285
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Acrylic
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
5 psi
Case Color
Black
Gauge Application
General-Purpose Case
Calibration Certificate Included
No
For Use With
Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators
Gauge Primary Range Smallest Graduation
5
Gauge Secondary Range Values
0 to 1400
Socket Material
Brass
Case Material
ABS Plastic
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Dial Color
White
Secondary Pressure Range
0 to 1,400
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Secondary Scale Units
kPa
Bezel Material
Crimped Stainless Steel
Includes Mounting Hardware
No
Removable Bezel
No
Includes Calibration Certificate
No
Dry Dampening Feature
None
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Process Connection Gender
Male
Primary Scale Minor Graduations
5
Pressure Range Type
Pressure
Freeze Resistant Movement
No
Vibration Resistance
None
Accuracy Scale
Mid-Scale
Includes Vent Plug
No
Sensor Material
Bronze
Non-Sparking
No
Scale Type
Dual
Gauge Case Liquid
None
Cleaned for Oxygen Service
No
Field Fillable
No
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 2 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Commercial Pressure Gauge
