  5. Commercial Pressure Gauge, 0 to 200 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location
Zoro Select Commercial Pressure Gauge, 0 to 200 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location 4FMR1 - main

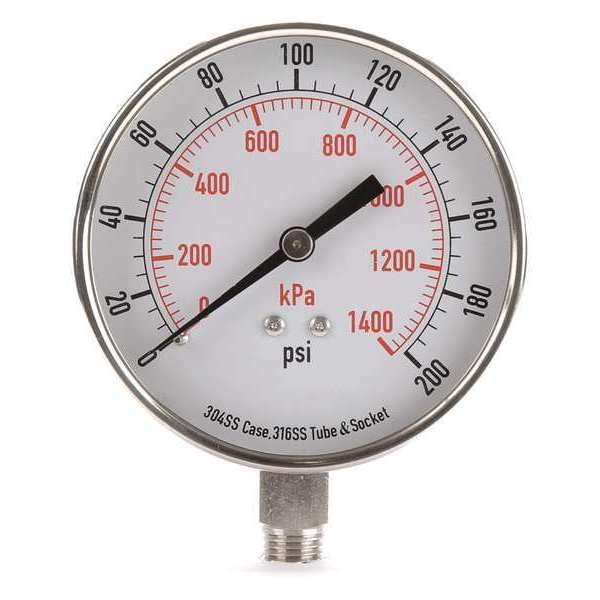

Commercial Pressure Gauge, 0 to 200 psi, 3 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4FMR1

  • Zoro # G0041973

product price:  $38.95
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4FMR1
Zoro #
G0041973
UPC #
190735508718
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Nominal Dial Size
3 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
5
Gauge Secondary Range Values
0 to 1400
Gauge Application
Corrosion-Resistant Case
Smallest Graduation
5 psi
Case Color
Silver
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Field Fillable
No
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Cleaned for Oxygen Service
No
Secondary Pressure Range
0 to 1,400
Primary Scale Minor Graduations
5
Dial Color
White
Includes Vent Plug
No
Sensor Material
316 Stainless Steel
Bezel Material
Crimped Stainless Steel
Accuracy Scale
Mid-Scale
Dry Dampening Feature
None
Pressure Range Type
Pressure
Gauge Case Liquid
None
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Removable Bezel
No
Secondary Scale Units
kPa
Scale Type
Dual
Vibration Resistance
None
Non-Sparking
No
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Freeze Resistant Movement
No
Process Connection Gender
Male
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Nominal Dial Size 3 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material 316 Stainless Steel, Socket Material 316 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Commercial Pressure Gauge
