  5. Commercial Pressure Gauge, 0 to 5,000 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location
Zoro Select Commercial Pressure Gauge, 0 to 5,000 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location 4FMU4 - main

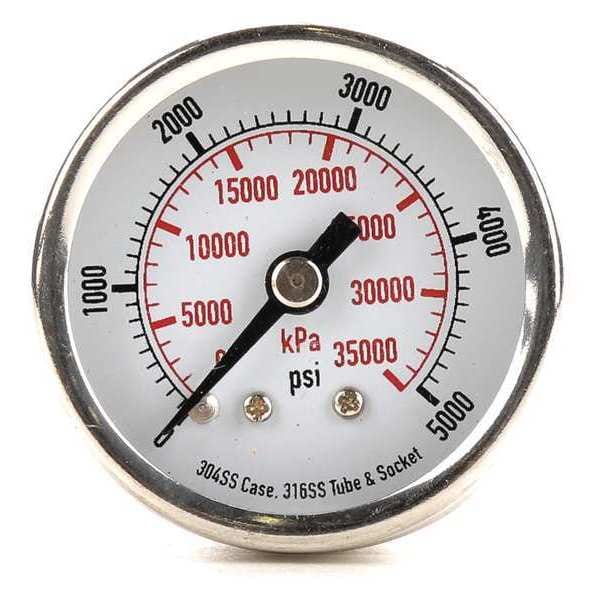

Commercial Pressure Gauge, 0 to 5,000 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # 4FMU4

  • Zoro # G0040503

product price:  $12.19
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4FMU4
Zoro #
G0040503
UPC #
190735508923
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Nominal Dial Size
1 1/2 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 5,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 35,000
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Gauge Primary Range Smallest Graduation
100
Smallest Graduation
100 psi
Case Color
Silver
Gauge Application
Corrosion-Resistant Case
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Sensor Material
316 Stainless Steel
Accuracy Scale
Mid-Scale
Secondary Scale Units
kPa
Scale Type
Dual
Includes Mounting Hardware
No
Freeze Resistant Movement
No
Secondary Pressure Range
0 to 35,000
Vibration Resistance
None
Removable Bezel
No
Dial Color
White
Pressure Gauge Type
Commercial Pressure Gauge
Dry Dampening Feature
None
Cleaned for Oxygen Service
No
Includes Vent Plug
No
Gauge Case Liquid
None
Bezel Material
Crimped Stainless Steel
Non-Sparking
No
Field Fillable
No
Process Connection Gender
Male
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Minor Graduations
100
Includes Calibration Certificate
No
Pressure Range Type
Pressure
Maximum Pressure
5000
Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Maximum
5,000 psi
Case Liquid
None
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
35,000 kPa
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Commercial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 5,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
