Zoro Select Commercial Pressure Gauge, 0 to 60 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location 4FMJ1 - main

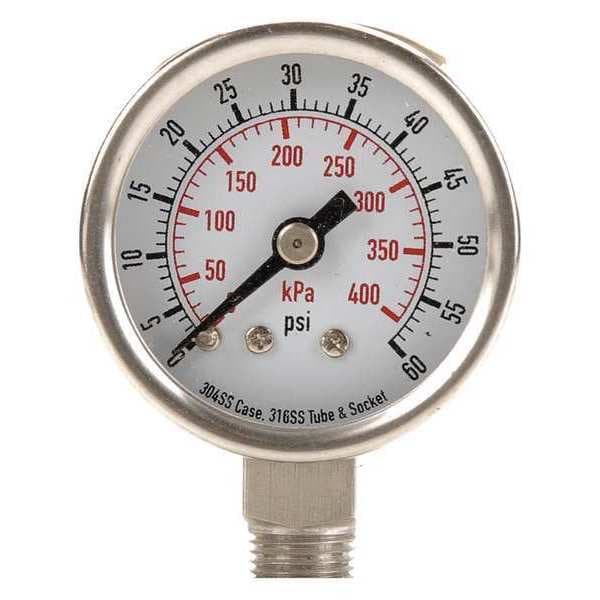

Commercial Pressure Gauge, 0 to 60 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

  • Mfr # 4FMJ1

  • Zoro # G0040266

product price:  $14.85
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4FMJ1
Zoro #
G0040266
UPC #
190735508268
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Nominal Dial Size
1 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
Corrosion-Resistant Case
Gauge Secondary Range Values
0 to 400
Smallest Graduation
1 psi
Case Color
Silver
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
1
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Connection Type
MNPT
Wetted Materials
Stainless Steel
Gauge Case Liquid
None
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Bezel Material
Crimped Stainless Steel
Scale Type
Dual
Non-Sparking
No
Primary Scale Minor Graduations
1
Includes Mounting Hardware
No
Dry Dampening Feature
None
Accuracy Scale
Mid-Scale
Secondary Scale Units
kPa
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Sensor Material
316 Stainless Steel
Freeze Resistant Movement
No
Secondary Pressure Range
0 to 400
Cleaned for Oxygen Service
No
Removable Bezel
No
Field Fillable
No
Includes Calibration Certificate
No
Vibration Resistance
None
Includes Vent Plug
No
Process Connection Gender
Male
Dial Color
White
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Nominal Dial Size 1 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material 316 Stainless Steel, Socket Material 316 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/8 in, Panel-Mountable No, Pressure Gauge Type General Purpose Dial Pressure Gauge
