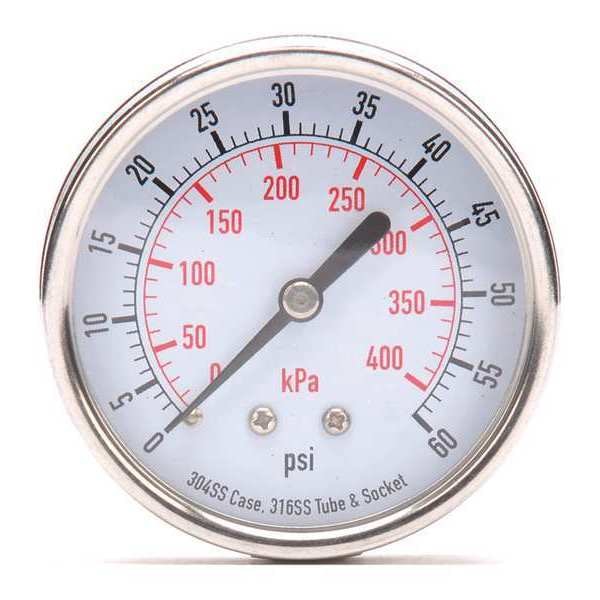

Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4FMW4

  • Zoro # G0041526

product price:
$
24.59
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4FMW4
Zoro #
G0041526
UPC #
190735509104
Country of Origin
China
Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 400
Gauge Application
Corrosion-Resistant Case
Case Color
Silver
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
1
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Smallest Graduation
1 psi
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Freeze Resistant Movement
No
Gauge Case Liquid
None
Accuracy Scale
Mid-Scale
Includes Vent Plug
No
Dry Dampening Feature
None
Secondary Pressure Range
0 to 400
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Scale Type
Dual
Includes Calibration Certificate
No
Non-Sparking
No
Bezel Material
Crimped Stainless Steel
Pressure Range Type
Pressure
Vibration Resistance
None
Includes Mounting Hardware
No
Sensor Material
316 Stainless Steel
Process Connection Gender
Male
Dial Color
White
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Removable Bezel
No
Primary Scale Minor Graduations
1
Secondary Scale Units
kPa
Cleaned for Oxygen Service
No
Field Fillable
No
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Nominal Dial Size 2 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material 316 Stainless Steel, Socket Material 316 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Commercial Pressure Gauge
