  5. Commercial Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/4 in NPT, Center Back Location
Zoro Select Commercial Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/4 in NPT, Center Back Location 4CFN9 - main

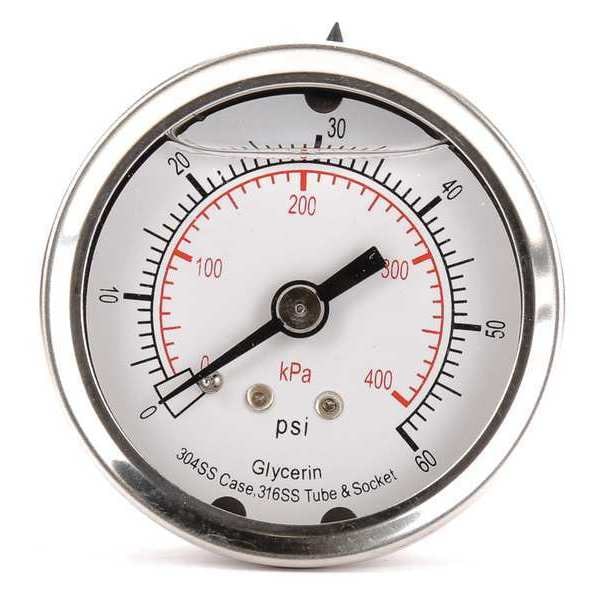

Commercial Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4CFN9

  • Zoro # G0041246

product price:  $20.15
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CFN9
Zoro #
G0041246
UPC #
190735502358
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Smallest Graduation
1 psi
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Gauge Filled With
Glycerin
Gauge Secondary Range Values
0 to 400
Gauge Primary Range Smallest Graduation
1
Case Color
Silver
Gauge Application
Corrosion-Resistant Case
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Pressure Gauge Type
Commercial Pressure Gauge
Cleaned for Oxygen Service
No
Secondary Scale Units
kPa
Non-Sparking
No
Field Fillable
No
Freeze Resistant Movement
No
Sensor Material
316 Stainless Steel
Dry Dampening Feature
None
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Gauge Case Liquid
Glycerin
Dial Color
White
Removable Bezel
No
Secondary Pressure Range
0 to 400 kPa
Process Connection Gender
Male
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Scale Type
Dual
Bezel Material
Crimped Stainless Steel
Includes Vent Plug
No
Pressure Range Type
Pressure
Primary Scale Minor Graduations
1, 2
Vibration Resistance
Liquid-Filled
Accuracy Scale
Mid-Scale
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
140 Degrees F
Primary Scale Pressure Measurement - Maximum
60 psi
Secondary Scale Pressure Measurement - Maximum
400 kPa
Case Liquid
Glycerin
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
