  5. Commercial Pressure Gauge, 0 to 600 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location

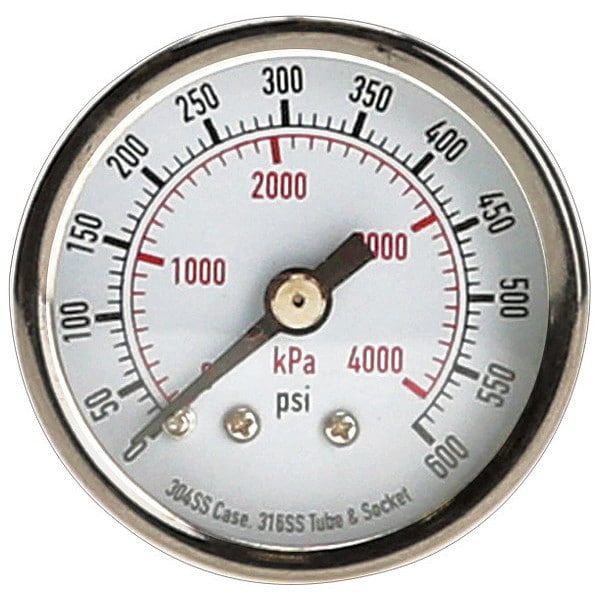

Zoro Select Commercial Pressure Gauge, 0 to 600 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location 4FMT9 - main

Commercial Pressure Gauge, 0 to 600 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # 4FMT9

  • Zoro # G0040467

product price:  $9.69
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4FMT9
Zoro #
G0040467
UPC #
190735508886
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Nominal Dial Size
1 1/2 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 600
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Case Color
Silver
Gauge Application
Corrosion-Resistant Case
Smallest Graduation
10 psi
Gauge Primary Range Smallest Graduation
10
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Case Material
304 Stainless Steel
Socket Material
316 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Shop By
Closeouts
Includes Calibration Certificate
No
Sensor Material
316 Stainless Steel
Primary Scale Minor Graduations
10
Includes Vent Plug
No
Includes Mounting Hardware
No
Pressure Gauge Type
Commercial Pressure Gauge
Vibration Resistance
None
Process Connection Gender
Male
Pressure Range Type
Pressure
Freeze Resistant Movement
No
Scale Type
Single
Accuracy Scale
Mid-Scale
Dial Color
White
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Bezel Material
Crimped Stainless Steel
Dry Dampening Feature
None
Non-Sparking
No
Cleaned for Oxygen Service
No
Field Fillable
No
Gauge Case Liquid
None
Removable Bezel
No
Maximum Pressure
600
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
Primary Scale Pressure Measurement - Maximum
600 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
150 Degrees F

Description

Commercial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 600, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
