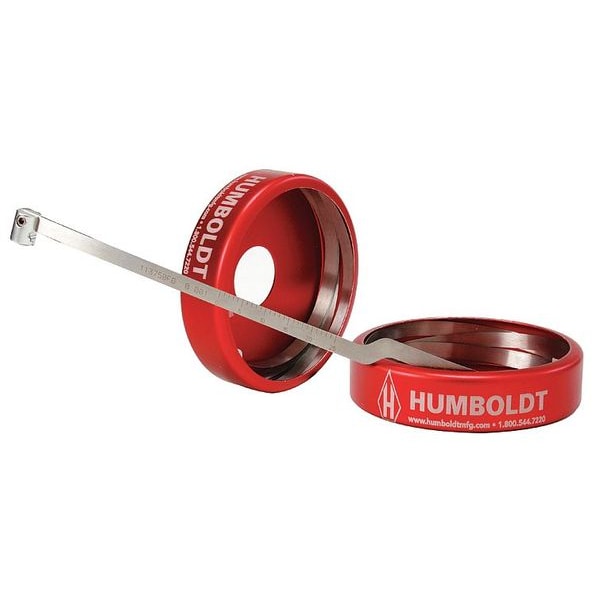

Diameter Tape, 2 In to 12 In

original price: $255.99
9% off
new price: $230.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Length (In.) 39 in
  • Graduations 0.001 in
  • Width (In.) 1/2 in
  • Graduation Type Engraved
  • Markings 2 in to 12 in Diameter in 0.001 in Increments
See all product information

Product Information

Dimensions

Length (In.) 39 in
Width (In.) 1/2 in
Blade Width 1/2 in
Blade Length 12 5/8 in
Case Height 7/8 in
Diameter Measured - Minimum 2 in
Case Depth 3 5/8 in
Diameter Measured - Maximum 12 in

Details

Graduations 0.001 in
Graduation Type Engraved
Markings 2 in to 12 in Diameter in 0.001 in Increments
Construction Stainless Alloy
Item Diameter Tape
Blade Material Steel
Case Type Open
Graduation Color Black
Case Color Black
Standards NIST Certified
Numeric Format Decimal
Tape Measure Type Diameter Tape Measure
Lock Type Non-Locking
Orientation Horizontal
Case Material Stainless Steel
Blade Return Type Manual
Blade Type Single-Sided
Accuracy +/- 0.001 in
Graduation Units Inches, Millimeters
Operating Temperature - Maximum 70 Degrees F
Specialized Scales Venier Scale
System of Measurement SAE/Diameter
Calibration Certificate NIST Traceable with Data
Tip Style Knob
Numeric Marks Inches

Description

Diameter Tape, Case Material Stainless Steel, Tape Measure Type Diameter Tape Measure, Accuracy +/- 0.001 in, Blade Length 12 5/8 in, Diameter Measured - Minimum 2 in, Diameter Measured - Maximum 12 in, Blade Type Single-Sided, Blade Return Type Manual, Case Type Open, Lock Type Non-Locking, System of Measurement SAE/Diameter, Blade Width 1/2 in, Tip Style Knob, Blade Material Steel, Graduation Units Inches, Millimeters, Graduation Color Black, Orientation Horizontal, Numeric Format Decimal
