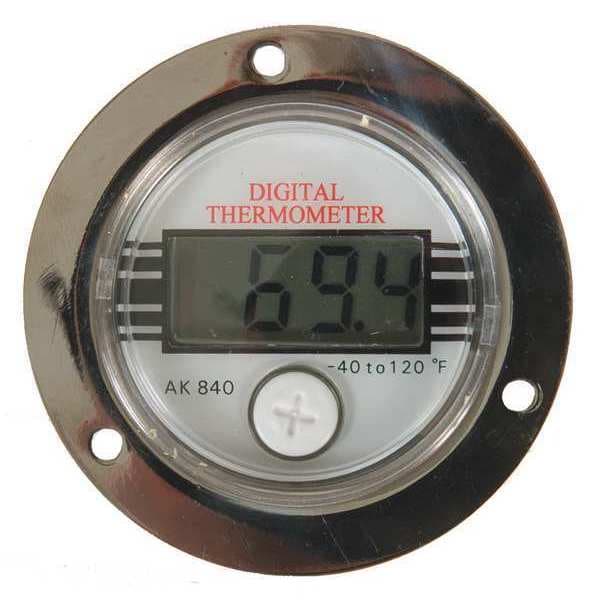

Digital Panel Mount, NTC, -40 to 120, Height: 2 in

original price: $18.89
10% off
new price: $16.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Sensor Style NTC Thermistor
  • Response Time 1 sec
  • Sensor Length 1 in
  • Sensor Dia. 1/4 in
  • Thermometer Power Source AG5 - 1.5V Battery
See all product information

Product Information

Dimensions

Sensor Length 1 in
Sensor Dia. 1/4 in
Height 2 in
Width 2 15/16 in
Depth 1 in
Sensor Wire Length 3 ft 3 in
Display Width 1.4 in
Display Diameter 1.4 in
Display Height 0.6 in
Manufacturer Warranty Length 1 yr
Digit Height 13/32 in
Cable Length 39 in
Mounting Hole Diameter 0.15 in
Flange Outside Diameter 3 in
Display Size 0.6 in H x 1.4 in W

Details

Item Digital Panel Mount Thermometer
Thermometer Item Digital Panel Mount Thermometer
Sensor Style NTC Thermistor
Response Time 1 sec
Thermometer Power Source AG5 - 1.5V Battery
Temp. Range (F) -40 Degrees to 120 Degrees
Case Material Stainless Steel
Temp. Range (C) -40 Degrees to 120 Degrees
Accuracy +/-2 Degrees F (-4 Degrees to 77 Degrees F), +/-4 Degrees F (Otherwise)
Mounting Front Flange
Display LCD
Line Material PVC
Lens Material Polycarbonate
Sensor Material Copper with Nickel Plating
Number of Digits 4
Power Source Battery
Thermometer Type Panel-Mount Digital Thermometer
Temperature Resolution F 0.1 Degrees F
Power Source Details 1.5V DC AG5 Battery
Temperature Scale Fahrenheit
Includes Batteries Yes
Construction 304 Stainless Steel Housing with Polycarbonate Lens
Housing Material 304 Stainless Steel
Temperature Range -40 Degrees to 120 Degrees F
Temperature Alarm No
Includes NIST-Traceable Certificate No
Waterproof No
Scale Type Digital
Alarm Style None
Probe Technology RTD Probe
Resolution 0.1¿F
Battery Type (1) AG5
Voltage 1.5V DC
Sensor Technology RTD
NSF Rated No
Backlit No
Minimum Temperature F -40 Degrees F
Mounting Style Front Flange
Maximum Temperature F 120 Degrees F
3-A Certified No
Display Type LCD
Digital Display 0.6 in H x 1.4 in W Display with 4-Digit LCD Display - 0.4 in Digit Height
Minimum Temperature °F -40 Degrees F
Maximum Temperature °F 120 Degrees F
Sensor Type NTC Thermistor

Description

Digital Panel Mount Thermometer, -40 Degrees to 120 Degrees F, 0.6 in H x 1.4 in W Display with 4-Digit LCD Display - 0.4 in Digit Height, RTD Probe, Front Flange, Accuracy +/-2 Degrees F (-4 Degrees to 77 Degrees F), +/-4 Degrees F (Otherwise), Backlit No, Cable Length 39 in, 304 Stainless Steel Housing with Polycarbonate Lens, 1.5V DC AG5 Battery
