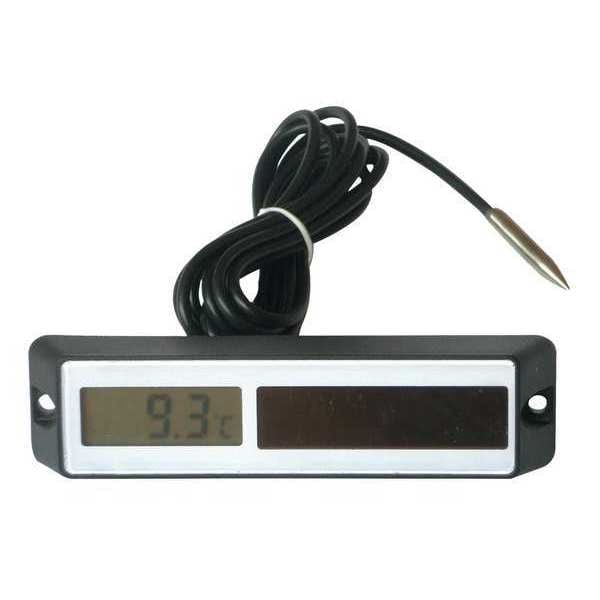

Digital Panel Mount, NTC, -58 to 158, Sensor Dia.: 1 1/4 in

  • Mfr # 13E395

  • Zoro # G4036523

product price:
$
18.15
/ea

Key Features

Accuracy
+/-1.8 Degrees F @ -4 to 86 Degrees F, +/-3.6 Degrees F Otherwise
Mounting
Surface
Temp. Range (C)
-50 Degrees to 70 Degrees
Temp. Range (F)
-58 Degrees to 158 Degrees
Lens Material
Polycarbonate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
13E395
Zoro #
G4036523
UPC #
190735386552
Country of Origin
China

Dimensions

Sensor Length
1.25 in
Sensor Dia.
1 1/4 in
Sensor Wire Length
5 ft
Width
4 in
Height
1 in
Display Width
1.34 in
Display Height
0.4 in
Overall Length
4.45 in
Probe Length
1.25 in
Cable Length
5 ft
Overall Width
4 in
Display Size
0.4 in H x 1.34 in W
Digit Height
13/32 in
Overall Depth
0.6 in
Probe Diameter
0.197 in
Manufacturer Warranty Length
3 yr
Overall Height
1 in
Overall Dimensions
4.45 in L x 4 in W x 1 in H
Battery Size
AAA
Wire Rope Length
4.45 in
Length
4.45 in

Details

Item
Thermometers
Accuracy
+/-1.8 Degrees F @ -4 to 86 Degrees F, +/-3.6 Degrees F Otherwise
Mounting
Surface
Temp. Range (C)
-50 Degrees to 70 Degrees
Temp. Range (F)
-58 Degrees to 158 Degrees
Lens Material
Polycarbonate
Case Material
Black ABS
Standards
NSF Approved
Line Material
Stainless Steel 304
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Thermometer Item
Digital Panel Mount Thermometer
Includes
Mounting Gasket
Response Time
1 sec
Sensor Style
NTC Thermistor
Thermometer Power Source
Solar With AAA Battery Back-Up
Display
3 Digit LCD
Power Source
Battery, Solar
Number of Digits
4
Temperature Resolution F
0.1 Degrees F
Scale
Celsius, Fahrenheit
Primary Scale
Temperature
Includes NIST-Traceable Certificate
No
Functions
Degrees F/ Degrees C Switchable
Maximum Temperature C
70 Degrees C
Temperature Range
-58 Degrees to 158 Degrees F/-50 Degrees to 70 Degrees C
Plate Style
Single-Gang
Minimum Temperature F
-58 Degrees F
Display Features
LCD Display
Backlit
No
Display Type
Digital
Power Source Details
(1) AAA
Maximum Temperature F
158 Degrees F
Sensor Type
1 1/4 in RTD Probe with 5 ft Cable
Voltage
1.5 V DC
Temperature Resolution C
0.1 Degrees C
NSF Rated
Yes
Sensor Technology
RTD
Temperature Accuracy
+/-1.8 Degrees F at -4 Degrees to 86 Degrees F, Out of Range +/--3.6 Degrees F
Scale Type
LCD
Resolution
0.1 Degrees F/0.1 Degrees C
Includes Batteries
Yes
Battery Type
(1) AAA
Included Probe Types
1 1/4 in x 1 1/4 in RTD Probe with 5 ft Cable
Digital Display
0.4 in H x 1.34 in W Display with 4-Digit LCD - 0.4 in Digit Height
Minimum Temperature C
-50 Degrees C
Sampling Rate
60 sec
Battery Run Time
1,000 hr
Thermometer Type
Surface-Mount Refrigeration Digital Thermometer
Application
Cold Rooms/Refrigerators/Freezers
Maximum Temperature °F
158 Degrees F
Minimum Temperature °F
-58 Degrees F
Minimum Temperature °C
-50 Degrees C
Maximum Temperature °C
70 Degrees C
Maximum Temperature °C
70 Degrees C
Minimum Temperature °F
-58 Degrees F
Minimum Temperature °C
-50 Degrees C
Maximum Temperature °F
158 Degrees F
Product Type
Remote Reading Thermometer
Maximum Temperature (°C)
70 Degrees C
Mounting Hardware
Screw Holes
Digital Display Type
LCD
Number of Batteries Required
1
Maximum Temperature (°F)
158 Degrees F
Power Source - TS Only
Battery, Solar
Power Source - old
Battery, Solar

Description

Thermometers, -58 Degrees to 158 Degrees F/-50 Degrees to 70 Degrees C, 0.4 in H x 1.34 in W Display with 4-Digit LCD - 0.4 in Digit Height, Accuracy +/-1.8 Degrees F @ -4 to 86 Degrees F, +/-3.6 Degrees F Otherwise, Backlit No, Cable Length 5 ft, (1) AAA
