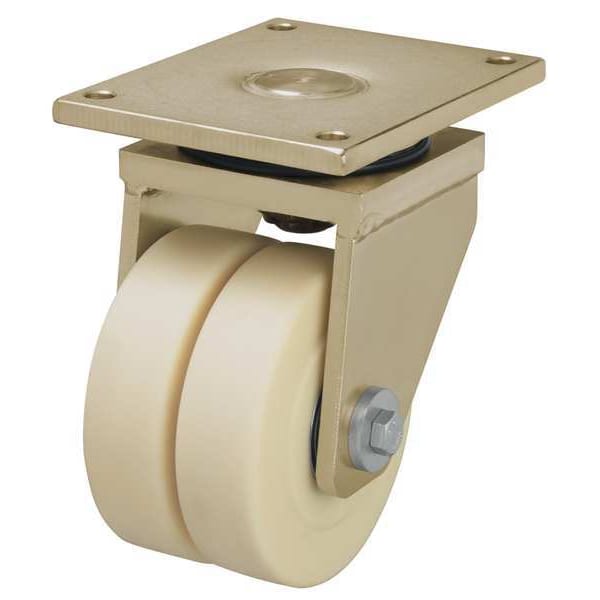

Zoro Select Dual Wheel Caster, Swivel, Nylon, 4 in., 4850 lb LSD-GSPO 100K - main

Dual Wheel Caster, Swivel, Nylon, 4 in., 4850 lb

  • Mfr # LSD-GSPO 100K

  • Zoro # G6622095

product price:  $338.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
1 9/16 in
Caster Frame Material
Steel
Load Rating
4850 lb
Outside Bolt Hole Spacing
105 mm x 140 mm
Stem Dia.
No Stem
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSD-GSPO 100K
Zoro #
G6622095
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1 9/16 in
Stem Dia.
No Stem
Mounting Bolt Dia.
9/16 in
Overall Height
6-9/32in
Wheel Dia.
4 in
Mounting Plate Size
5-1/2in x 6-57/64in
Mounting Height
6 5/16 in
Swivel Radius
95 mm
Bolt Hole Spacing - Length
5.5 in
Bolt Hole Spacing - Width
4.125 in
Mounting Plate Length
5 1/2 in
Overall Wheel Width
1 9/16 in
Mounting Plate Thickness
3/8in
For Axle Dia.
10 mm

Details

Caster Frame Material
Steel
Item
Swivel Caster
Load Rating
4850 lb
Outside Bolt Hole Spacing
105 mm x 140 mm
Caster Brake Included
No
Caster Sub-Type
Swivel
Core Color
White
Wheel Color
White
Caster Plate Hole Pattern
D
Caster Temp. Range Available
No
Inside Bolt Hole Spacing
105 mm x 140 mm
Frame Finish
Zinc Chromate
Caster Stem Type
No Stem/Plate Included
Number of Wheels
2
Standards
RoHS, ICWM
Tread
Standard
Caster Mounting Type
Plate
Tread Color
Natural Beige
Non-Marking
Yes
Replacement Wheel
Mfr. No. GSPO 100/20K
System of Measurement
Metric
Caster Brake Type
No Brake
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel Core Material
Nylon
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Load Rating Range
Heavy-Duty
Swivel Raceway Type
Double/Single Ball
Swivel Construction
Kingpin
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
2200 kg
Series
LSD Series
Wheel Hardness Rating
80 Shore D
Load Capacity - Maximum
4,960 lb
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Maintenance Free
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 4850 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
