Shop ZORO SELECT

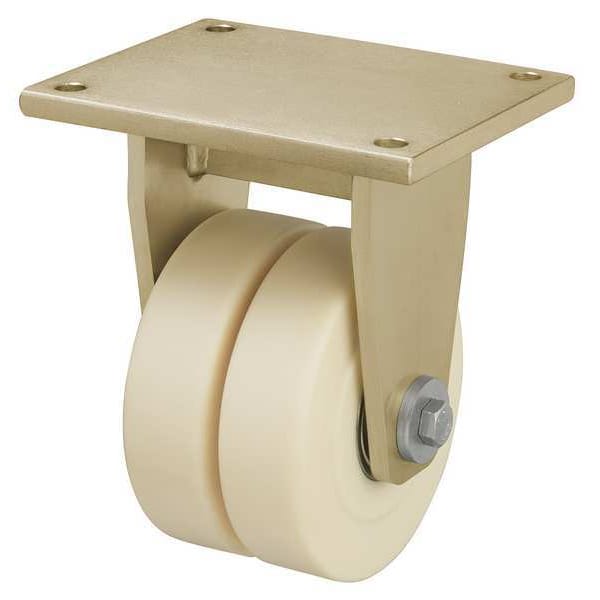

Dual Whl Caster, Rigd, Nylon, 5 in, 7940 lb.

  • Mfr # BSD-GSPO 125K
  • Zoro # G7040311
product price:
$
619.99
/ea
Free Shipping & Returns

Key Features

Overall Height
8-1/16"
Caster Sub-Type
Rigid
Wheel Width
2 3/16 in
Caster Plate Hole Pattern
D
Wheel Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BSD-GSPO 125K
Zoro #
G7040311
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
8-1/16"
Wheel Width
2 3/16 in
Wheel Dia.
5 in
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
7-7/8in x 10-3/64in
Mounting Height
8 1/16 in
Mounting Plate Length
7 7/8 in
For Axle Dia.
10 mm
Overall Wheel Width
2 3/16 in
Bolt Hole Spacing - Width
6.313 in
Mounting Plate Thickness
3/8 in
Bolt Hole Spacing - Length
8.25 in

Details

Caster Sub-Type
Rigid
Caster Plate Hole Pattern
D
Wheel Color
White
Load Rating
7925 lb
Item
Plate Caster
Caster Brake Included
No
Outside Bolt Hole Spacing
4-3/4 in x 8-1/4 in
Inside Bolt Hole Spacing
4-3/4 in x 8-1/4 in
Caster Frame Material
Steel
Core Color
Tan
Frame Finish
Zinc Chromate
Caster Temp. Range Available
No
Number of Wheels
2
Non-Marking
Yes
Wheel/Tread Hardness Rating
Hard
Caster Brake Type
No Brake
Wheel Bearing Type
Ball
Load Rating Range
Extra Super Duty
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel Core Material
Nylon
Includes Thread Guards
No
Tread Shape
Standard
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
Standards
RoHS, ICWM
Tread
Standard
Tread Color
Natural Beige
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Load Capacity
3600 kg
Caster Mounting Type
Plate
Extended Lead
No
Replacement Wheel
Mfr. No. GSPO 125/25K
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
BSD Series
System of Measurement
Inch
Wheel Hardness Rating
80 Shore D
Load Capacity - Maximum
7,935 lb
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Rigid, Plate Caster, Load Rating 7925 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 3/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
