  9. Electric Sequencer, 1 Switch, 1-25 Sec
Zoro Select Electric Sequencer, 1 Switch, 1-25 Sec 6UEE4 - main

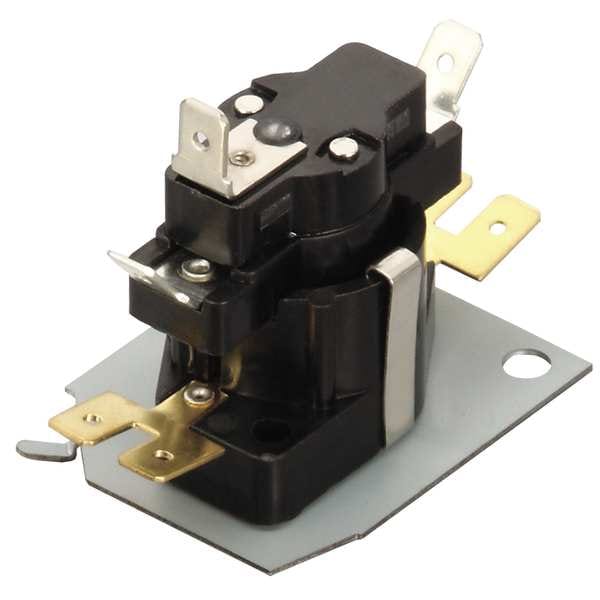

Electric Sequencer, 1 Switch, 1-25 Sec

  • Mfr # 6UEE4

  • Zoro # G3696777

product price: $16.49
/ea

Key Features

Main Switch On Time (Sec.)
1 to 25
Resistive Amps @ 240V
30 A
On Time (Seconds)
65 to 115
Depth (In.)
1 1/2 in
Width (In.)
1 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6UEE4
Zoro #
G3696777
UPC #
190735544822
Country of Origin
China

Dimensions

Depth (In.)
1 1/2 in
Width (In.)
1 3/4 in
Height (In.)
2 1/2 in
Overall Depth
1 1/2 in
Overall Length
2 1/2 in
Overall Width
1 3/4 in

Details

Main Switch On Time (Sec.)
1 to 25
Resistive Amps @ 240V
30 A
On Time (Seconds)
65 to 115
Item
Electric Sequencer
Number of Switches
1
Full Load Amps @ 240VAC
7 A
Aux. Switch Off Time (Sec.)
1 to 25
Number of Timings
1
Control Volts
24 V
Pilot Duty 120/480V (VA)
125 VA
Aux. Switch On Time (Sec.)
65 to 115
Type
Strip Heat And/Or Blower Fan In Heat Pumps And Electric Furnaces
Off Time (Seconds)
1 to 25
Includes
Double Quick Connect Terminals for Combination Load
Locked Rotor Amps @ 240V
42 A
Main Switch Off Time (Sec.)
65 to 115
Operating Temperature - Minimum
-20 Degrees F
Locked Rotor Current @ 120V AC
72 A
Main Switch Off Maximum
115 sec
Auxiliary Switch Off Maximum
25 sec
Main Switch Off Minimum
65 sec
Body Material
Phenol Formaldehyde/Copper/Ferrum
Standards
cURus Recognized
Full Load Current @ 120V AC
10 A
Resistive Load Current @ 240V AC
25 A
Auxiliary Switch On Minimum
65 sec
Main Switch On Minimum
1 sec
Voltage
24V AC
Operating Temperature - Maximum
281 Degrees F
Pilot Duty @ 120V AC
125 VA
Auxiliary Switch Off Minimum
1 sec
Resistive Load Current @ 120V AC
25 A
Cover Material
Phenol Formaldehyde/Copper/Ferrum
Full Load Current @ 240V AC
7 A
Installation Orientation
Horizontal, Vertical
Application
HVAC Systems, Refrigeration Systems
Locked Rotor Current @ 240V AC
42 A
Auxiliary Switch On Maximum
115 sec
Main Switch On Maximum
25 sec

Description

Electric Sequencer, Application HVAC Systems, Refrigeration Systems, Auxiliary Switch Off Maximum 25 sec, Auxiliary Switch Off Minimum 1 sec, Auxiliary Switch On Maximum 115 sec, Auxiliary Switch On Minimum 65 sec, Body Material Phenol Formaldehyde/Copper/Ferrum, Cover Material Phenol Formaldehyde/Copper/Ferrum, Full Load Current @ 120V AC 10 A, Full Load Current @ 240V AC 7 A, Installation Orientation Horizontal, Vertical, Locked Rotor Current @ 120V AC 72 A, Locked Rotor Current @ 240V AC 42 A
