  9. Electric Sequencer, 1 Switch, 30-90 Sec

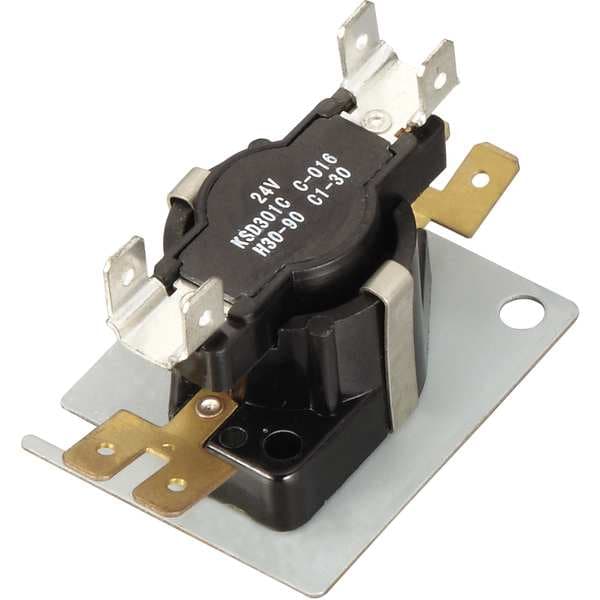

Zoro Select Electric Sequencer, 1 Switch, 30-90 Sec 6UEE5 - main

Electric Sequencer, 1 Switch, 30-90 Sec

  • Mfr # 6UEE5

  • Zoro # G3926115

product price: $15.65
/ea

Key Features

Aux. Switch On Time (Sec.)
30 to 90
Main Switch Off Time (Sec.)
1 to 30
Includes
Double Quick Connect Terminals for Combination Load
Number of Timings
1
Depth (In.)
1 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6UEE5
Zoro #
G3926115
UPC #
190735544839
Country of Origin
China

Dimensions

Depth (In.)
1 5/8 in
Height (In.)
1 1/2 in
Width (In.)
1 5/8 in
Overall Width
1 5/8 in
Overall Length
1 1/2 in
Overall Depth
1 5/8 in

Details

Aux. Switch On Time (Sec.)
30 to 90
Main Switch Off Time (Sec.)
1 to 30
Includes
Double Quick Connect Terminals for Combination Load
Number of Timings
1
Full Load Amps @ 240VAC
7 A
Off Time (Seconds)
1 to 30
Item
Electric Sequencer
Control Volts
24 V
Type
Strip Heat And/Or Blower Fan In Heat Pumps And Electric Furnaces
Locked Rotor Amps @ 240V
42 A
Number of Switches
1
Pilot Duty 120/480V (VA)
125 VA
Main Switch On Time (Sec.)
30 to 90
Aux. Switch Off Time (Sec.)
1 to 30
On Time (Seconds)
30 to 90
Resistive Amps @ 240V
30 A
Main Switch On Maximum
90 sec
Main Switch Off Minimum
1 sec
Auxiliary Switch On Maximum
90 sec
Locked Rotor Current @ 240V AC
42 A
Locked Rotor Current @ 120V AC
72 A
Application
HVAC Systems, Refrigeration Systems
Installation Orientation
Horizontal, Vertical
Auxiliary Switch On Minimum
30 sec
Full Load Current @ 240V AC
7 A
Main Switch On Minimum
30 sec
Cover Material
Phenol Formaldehyde/Copper/Ferrum
Voltage
24V AC
Main Switch Off Maximum
30 sec
Standards
cURus Recognized
Pilot Duty @ 120V AC
125 VA
Full Load Current @ 120V AC
10 A
Auxiliary Switch Off Minimum
1 sec
Operating Temperature - Maximum
281 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Resistive Load Current @ 240V AC
25 A
Resistive Load Current @ 120V AC
25 A
Auxiliary Switch Off Maximum
30 sec
Body Material
Phenol Formaldehyde/Copper/Ferrum

Description

Electric Sequencer, Application HVAC Systems, Refrigeration Systems, Auxiliary Switch Off Maximum 30 sec, Auxiliary Switch Off Minimum 1 sec, Auxiliary Switch On Maximum 90 sec, Auxiliary Switch On Minimum 30 sec, Body Material Phenol Formaldehyde/Copper/Ferrum, Cover Material Phenol Formaldehyde/Copper/Ferrum, Full Load Current @ 120V AC 10 A, Full Load Current @ 240V AC 7 A, Installation Orientation Horizontal, Vertical, Locked Rotor Current @ 120V AC 72 A, Locked Rotor Current @ 240V AC 42 A
