  9. Electric Sequencer, 2 Switch, 1-20 Sec
Zoro Select Electric Sequencer, 2 Switch, 1-20 Sec 6UEE8 - main

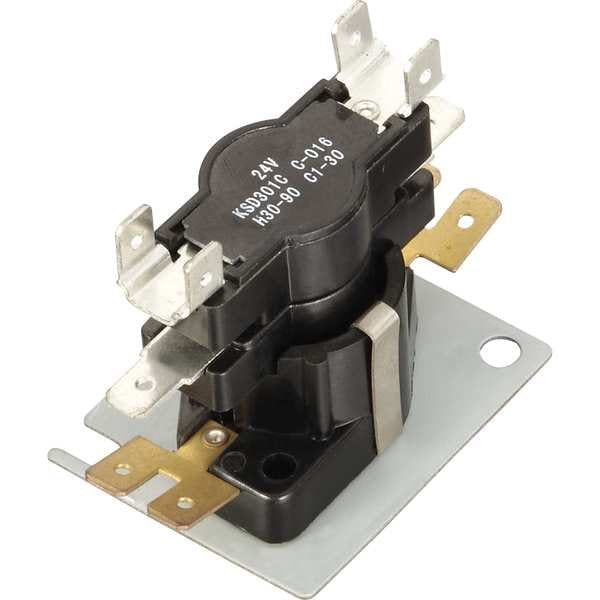

Electric Sequencer, 2 Switch, 1-20 Sec

  • Mfr # 6UEE8

  • Zoro # G3730745

product price: $23.39
/ea

Key Features

Off Time (Seconds)
1 to 20
Aux. Switch On Time (Sec.)
4 to 110
Pilot Duty 120/480V (VA)
125 VA
Resistive Amps @ 240V
30 A
On Time (Seconds)
40 to 110
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6UEE8
Zoro #
G3730745
UPC #
190735544860
Country of Origin
China

Dimensions

Height (In.)
1 7/8 in
Width (In.)
2 in
Depth (In.)
1 5/8 in
Overall Depth
1 5/8 in
Overall Width
2 in
Overall Length
1 7/8 in

Details

Off Time (Seconds)
1 to 20
Aux. Switch On Time (Sec.)
4 to 110
Pilot Duty 120/480V (VA)
125 VA
Resistive Amps @ 240V
30 A
On Time (Seconds)
40 to 110
Includes
Double Quick Connect Terminals for Combination Load
Main Switch On Time (Sec.)
1 to 20
Type
Strip Heat And/Or Blower Fan In Heat Pumps And Electric Furnaces
Number of Switches
2
Aux. Switch Off Time (Sec.)
1 to 20
Item
Electric Sequencer
Control Volts
24 V
Number of Timings
2
Locked Rotor Amps @ 240V
42 A
Main Switch Off Time (Sec.)
40 to 110
Full Load Amps @ 240VAC
7 A
Auxiliary Switch On Maximum
110 sec
Locked Rotor Current @ 240V AC
42 A
Auxiliary Switch Off Minimum
1 sec
Operating Temperature - Maximum
281 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Main Switch On Minimum
1 sec
Installation Orientation
Horizontal, Vertical
Auxiliary Switch On Minimum
4 sec
Voltage
24V AC
Resistive Load Current @ 240V AC
25 A
Cover Material
Phenol Formaldehyde/Copper/Ferrum
Full Load Current @ 240V AC
7 A
Application
HVAC Systems, Refrigeration Systems
Main Switch Off Maximum
110 sec
Standards
cURus Recognized
Pilot Duty @ 120V AC
125 VA
Auxiliary Switch Off Maximum
20 sec
Locked Rotor Current @ 120V AC
72 A
Main Switch Off Minimum
40 sec
Main Switch On Maximum
20 sec
Resistive Load Current @ 120V AC
25 A
Full Load Current @ 120V AC
10 A
Body Material
Phenol Formaldehyde/Copper/Ferrum

Description

Electric Sequencer, Application HVAC Systems, Refrigeration Systems, Auxiliary Switch Off Maximum 20 sec, Auxiliary Switch Off Minimum 1 sec, Auxiliary Switch On Maximum 110 sec, Auxiliary Switch On Minimum 4 sec, Body Material Phenol Formaldehyde/Copper/Ferrum, Cover Material Phenol Formaldehyde/Copper/Ferrum, Full Load Current @ 120V AC 10 A, Full Load Current @ 240V AC 7 A, Installation Orientation Horizontal, Vertical, Locked Rotor Current @ 120V AC 72 A, Locked Rotor Current @ 240V AC 42 A
