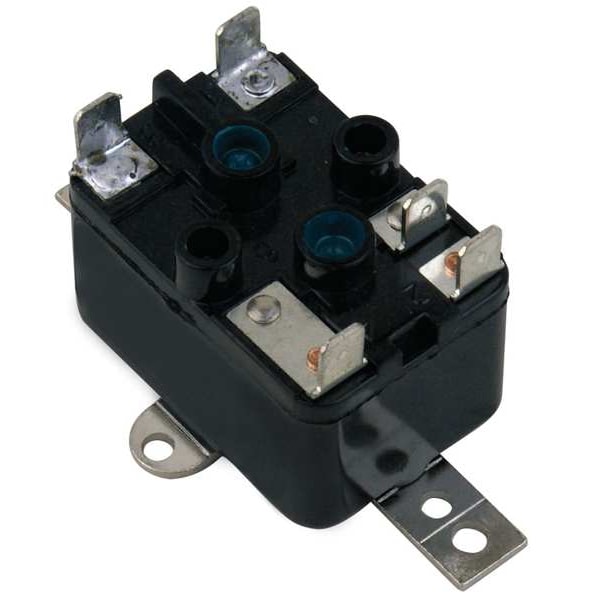

Enclosed Fan Relay, SPDT, 277V Coil

  • Mfr # 6ACJ1

  • Zoro # G1865482

product price:
$
9.15
/ea

Key Features

Switch Type
SPDT
Coil Volts
277
Full Load Amps @ 120VAC
14 A
Agency Compliance
cURus
Mounting
Universal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6ACJ1
Zoro #
G1865482
UPC #
190735537817
Country of Origin
China

Dimensions

Depth (In.)
2 in
Height (In.)
2 1/4 in
Width (In.)
2 1/8 in
Overall Length
2 1/4 in
Overall Width
2 1/8 in
Overall Depth
2 in
Wire Rope Length
2 1/4 in
Length
2 1/4 in

Details

Item
Switching Relay
Switch Type
SPDT
Coil Volts
277
Full Load Amps @ 120VAC
14 A
Agency Compliance
cURus
Mounting
Universal
Type
Enclosed Fan
Application
Resistive Loads, Single Phase Motors, Solenoids, Two Speed Motors
Full Load Amps @ 240VAC
8 A
Locked Rotor Amps @ 120V
60 A
Locked Rotor Amps @ 240V
48 A
Switch Action
Normally Closed/Normally Open
Base Shape
Square
Standards
cURus Recognized
Number of Pins
4
Frequency
50/60 Hz
Electrical Connection Material
Silver Alloy/Copper
Power Consumption
4 VA
Locked Rotor Current @ 120V AC
60 A
Phase
Single
Locked Rotor Current @ 240V AC
48 A
Contact Form
SPDT
Mounting Style
Surface
Operating Humidity - Minimum
5 %
Full Load Current @ 240V AC
8 A
Operating Humidity - Maximum
Not Rated
Operating Temperature - Maximum
195 Degrees F
Electrical Connection Type
Spade Terminal
Operating Temperature - Minimum
10 Degrees F
Voltage
277V AC
Resistive Load Current @ 240V AC
18 A
Full Load Current @ 120V AC
14 A
Number of Relays
1

Description

Switching Relay, Application Resistive Loads, Single Phase Motors, Solenoids, Two Speed Motors, Base Shape Square, Contact Form SPDT, Electrical Connection Material Silver Alloy/Copper, Electrical Connection Type Spade Terminal, Frequency 50/60 Hz, Full Load Current @ 120V AC 14 A, Full Load Current @ 240V AC 8 A, Horsepower @ 120V AC Not Applicable, Horsepower @ 240V AC Not Applicable, Includes Low Voltage Relay Not Applicable, Locked Rotor Current @ 120V AC 60 A

Restrictions

Hazardous material
