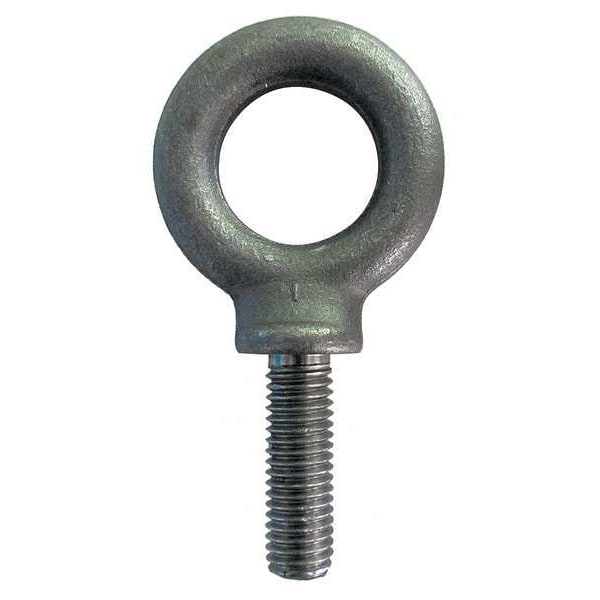

Eye Bolt With Shoulder, 5/16"-18, 1-1/8 in Shank, 7/8 in ID, Steel, Plain
Mfr # U16000.031.0112
Zoro # G4981277
CAD Available
product price: $4.35
/eaKey Features
CAD Drawing
Shoulder Style
With Shoulder
System of Measurement
Inch
Thread Size
5/16"-18
Shank Length
1-1/8 in
Eye Inside Diameter
7/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U16000.031.0112
Zoro #
G4981277
UPC #
-
Country of Origin
Multiple
Dimensions
Thread Size
5/16"-18
Shank Length
1-1/8 in
Eye Inside Diameter
7/8 in
Overall Length
2-21/32 in
Thread Length
1-1/8"
Screw Size
5/16 in
Shoulder Length
5/32 in
Shoulder Diameter
19/32 in
Shank Diameter
5/16 in
Eye Outside Diameter
1 7/16 in
Dia./Thread Size
5/16"-18
Eye Outside Dia.
1 7/16 in
Eye Inside Dia.
7/8 in
Shank Dia.
5/16 in
Shoulder Dia.
0.56 in to 0.62 in
Description
Machinery Eye Bolt, System of Measurement Inch, Eyebolt Type With Shoulder, Material Steel, Finish Plain, Thread Size 5/16 In.-18, Thread Length 1 1/8 in, Shank Dia. 5/16 in, Shank Length 1 1/8 in, Shoulder Dia. 0.56 in to 0.62 in, Shoulder Length 5/32 in, Eye Inside Dia. 7/8 in, Eye Outside Dia. 1 7/16 in, Overall Length 2 21/32 in, Working Load Limit 900 lb
