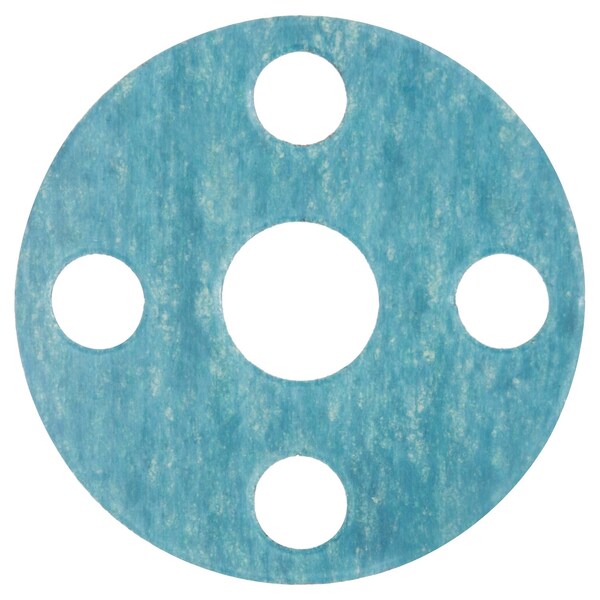

Flange Gasket, Full Face, 10" Pipe
- Mfr # BULK-FG-95
- Zoro # G7941794
product price:Â
$
29.49
/ea
Key Features
Pipe Size
10"
Outside Dia.
17-1/2"
Inside Dia.
10-3/4"
Bolt Holes
16
Thickness
1/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BULK-FG-95
- Zoro #
- G7941794
- UPC #
- 193005022617
- Country of Origin
- United States
- Bolt Holes
- 16
- Material of Construction
- Aramid with Buna-N Binder
- Color
- Green
- Type
- Full Face Gasket
- Standards
- ASME B16.21
- Temp. Range (F)
- -100° to 400°F
- Maximum Operating Pressure
- 300 psi
- Item
- Full Face Flange Gasket
- Minimum Operating Temperature
- -100 Degrees F
- Number of Bolt Holes
- 16
- Insert Material
- None
- Maximum Operating Temperature
- 400 Degrees F
- System of Measurement
- Inch
- Metal Detectable Gasket
- No
- Reinforced
- Yes
- Product Type
- Full-Face Gasket
- Resistance Properties
- Chemical-Resistant, Fuel-Resistant, Oil-Resistant, Water-Resistant
- X-Ray Detectable
- No
- Gasket Material
- Aramid
- Binder Material
- Buna-N
- FDA Approved
- No
- For Flange ANSI Class
- 300
- For Fluid Type
- Oil
- Hardness
- Not Rated
Dimensions
- Pipe Size
- 10"
- Outside Dia.
- 17-1/2"
- Inside Dia.
- 10-3/4"
- Thickness
- 1/8 in
- Bolt Circle Dia.
- 1-1/8"
- Inside Diameter
- 10 3/4 in
- For Pipe Size
- 10 in
- Bolt Circle Diameter
- 15 1/4 in
- Bolt Hole Diameter
- 1 1/8 in
Description
Full Face Flange Gasket, Gasket Material Aramid, Insert Material None, For Pipe Size 10 in, For Flange ANSI Class 300, Binder Material Buna-N, Color Green, Inside Diameter 10 3/4 in, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 400 Degrees F, Outside Diameter 17 1/2 in, Thickness 1/8 in, Number of Bolt Holes 16, Bolt Hole Diameter 1 1/8 in, Product Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
