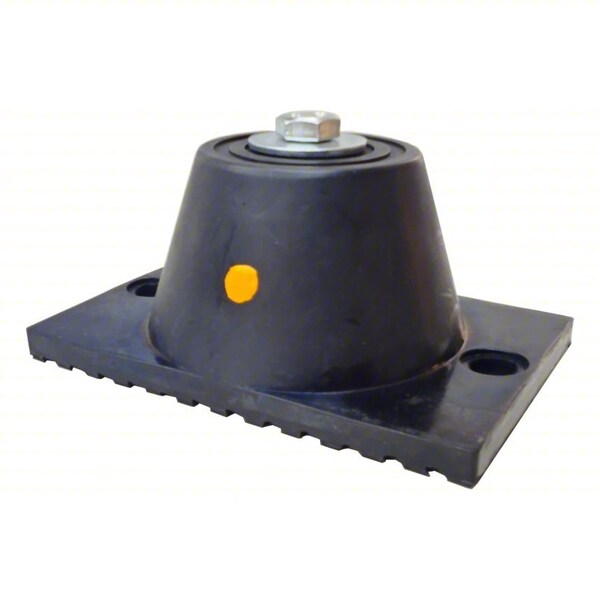

Floor Mount Vibration Isolator, EPDM

Mfr # 852C49
Zoro # G916065954

44.29

Key Features

Color Mark

Yellow

Includes

Top Bolt, Washer

Center-to-Center Mounting Hole Distance

5 1/32 in

Thread Size

M12×1.75

Dimension D

2 3/4 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 852C49
Zoro #: G916065954
UPC #: -
Country of Origin: China

Dimensions

Thread Size: M12×1.75
Dimension D: 2 3/4 in
Isolator Diameter: 2 3/4 in
Overall Height: 2 25/32 in
Dimension T: 25/64 in
Dimension BC: 5 1/32 in
Dimension H: 2 25/32 in
Overall Width: 4 1/8 in
Screw Size: M12
Overall Depth: 6 1/64 in
Dimension L: 6 1/64 in

Details

Item: Floor-Mount Vibration Isolator
Color Mark: Yellow
Includes: Top Bolt, Washer
Center-to-Center Mounting Hole Distance: 5 1/32 in
Operating Temperature - Maximum: 158 Degrees F
Operating Temperature - Minimum: -4 Degrees F
Includes Spring: Spring Not Included
System of Measurement: Inch
Load Downward Compression - Maximum: 2,300 lbf
Rated Capacity - Minimum: 1,150 lb
Durometer: 85A
Isolator Material: Neoprene
Rated Deflection - Minimum: 0.25 in
Rated Deflection - Maximum: 0.5 in
Rated Capacity - Maximum: 2,300 lb

Description

Item Floor-Mount Vibration Isolator, Color Mark Yellow, Spring Color Not Applicable, Includes Top Bolt, Washer, Dimension A Not Applicable, Dimension T 25/64 in, Dimension G Not Applicable, Dimension H 2 25/32 in, Dimension I Not Applicable, Dimension J Not Applicable
