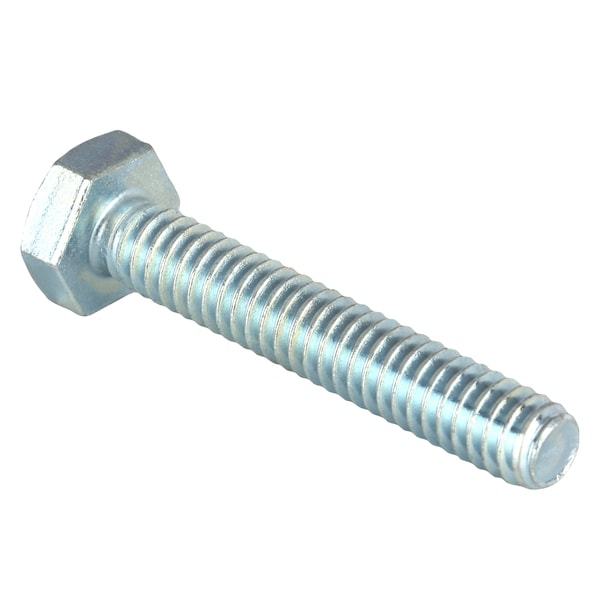

Grade 5, 1/4"-20 Hex Head Tap Bolt, Zinc Plated Steel, 1-1/2 in L, 100 PK

  • Mfr # U01210.025.0150
  • Zoro # G2518017
CAD Available
product price:
$
10.99
/pk 100, $0.11/ea

Key Features

External Hex Drive
Grade 5 Material Grade/Class
CAD Drawing
System of Measurement
Inch
Thread Size
1/4"-20
Head Width
7/16 in
Material
Steel
Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
U01210.025.0150
Zoro #
G2518017
UPC #
-
Country of Origin
Multiple

Dimensions

Thread Size
1/4"-20
Fastener Length
1-1/2 in
Head Width
7/16 in
Head Height
11/64 in
Thread Length
1-1/2"
Min. Thread Length
1 1/2 in
Drive Size
7/16 in
Minimum Thread Length
1 1/2 in
Overall Length
1 1/2 in
Screw Size
1/4 in
Wire Rope Length
1 1/2 in
Length
1 1/2 in

Details

CAD Available
Yes
System of Measurement
Inch
Drive
External Hex
Material Grade/Class
Grade 5
Material
Steel
Finish
Zinc Plated
Thread Style
Fully Threaded
Thread Direction
Right Hand
Standards
SAE J429
Item
Hex Head Tap Bolt
Tensile Strength
105,000 psi
Rockwell Hardness
HRC19
Thread Type
Coarse
Proof Load
74,000 to 85,000 psi
Dimensional Standards
ASME B18.2.1
Threadlocker Minimum Temperature
1/4"-20
Globally Sourced
Globally Sourced
Manufacturer Location
Globally Sourced
Material Quality Standards
SAE J429
Fastener Industry Standards
ASME B18.2.1
Type
Hex Head Tap Bolt
Drive Type
External Hex
Head Type
Hex

Description

The ZORO SELECT - U01210.025.0150 is a Hex Head Tap Bolt, a type of fastener with a hexagonal head and machine screw threads that taper to a point. This bolt is designed for use in drilled and tapped holes, where it's tightened or loosened using an external hex drive such as a wrench or socket. Made from steel and finished with zinc plating, this bolt adheres to the ASME B18.2.1 dimensional standards which are commonly used in various industrial applications.

  • Drive Size: The 7/16 inch drive size indicates the tool size required for installation or removal.
  • Fastener Length: With a length of 1-1/2 inches, it is designed to be inserted into materials.
  • Globally Sourced: Procured from international manufacturers providing diverse range of quality options.
  • Material Grade/Class: Conforms to Grade 5 standard which indicates certain levels of strength, hardness and resistance properties.
  • Tensile Strength: Has a tensile strength rating of up to 105,000 psi as per manufacturer's specifications.
  • Thread Direction & Style: Features right-hand thread direction intended for clockwise tightening and a fully-threaded style that extends from tip to head as per design requirements
