  5. Grade 5, 5/8"-11 Hex Head Cap Screw, Zinc Plated Steel, 3 in L, 5 PK
Zoro Select Grade 5, 5/8"-11 Hex Head Cap Screw, Zinc Plated Steel, 3 in L, 5 PK U01200.062.0300 - main

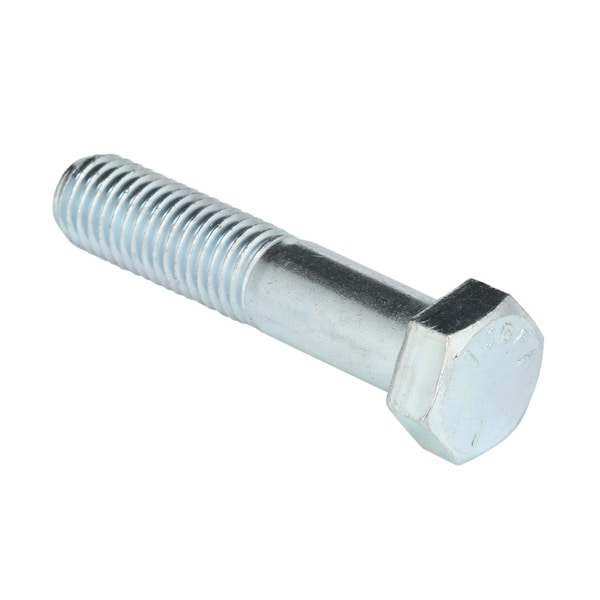

Grade 5, 5/8"-11 Hex Head Cap Screw, Zinc Plated Steel, 3 in L, 5 PK

  • Mfr # U01200.062.0300

  • Zoro # G5320752

product price:  $6.15
/pk 5, $1.23/ea

Key Features

External Hex Drive
Grade 5 Material Grade/Class
System of Measurement
Inch
Thread Size
5/8"-11
Head Width
15/16 in
Material
Steel
Finish
Zinc Plated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
U01200.062.0300
Zoro #
G5320752
UPC #
-
Country of Origin
Multiple

Dimensions

Thread Size
5/8"-11
Fastener Length
3 in
Head Width
15/16 in
Head Height
25/64 in
Min. Thread Length
1 1/2 in
Drive Size
15/16 in

Details

System of Measurement
Inch
Drive
External Hex
Material Grade/Class
Grade 5
Material
Steel
Finish
Zinc Plated
Thread Style
Partially Threaded
Thread Direction
Right Hand
Standards
SAE J429
Item
Hex Head Cap Screw
Rockwell Hardness
HRC19
Thread Type
Coarse
Proof Load
74,000 to 85,000 psi
Tensile Strength
105,000 psi
Threadlocker Minimum Temperature
5/8"-11
Globally Sourced
Globally Sourced
Dimensional Standards
ASME B18.2.1
Thread Fit
2A
Manufacturer Location
Globally Sourced
Material Quality Standards
SAE J429
Fastener Industry Standards
ASME B18.2.1

Description

The ZORO SELECT - U01200.062.0300 is a Hex Head Cap Screw, a type of fastener with a hexagonal-shaped head used for securely joining materials in various industrial applications. This screw adheres to the ASME B18.2.1 dimensional standards and requires an external hex drive for installation or removal.

  • Fastener Length: The screw has a length of 3 inches and may be used in various depths depending on the material and application.
  • Finish: The product features a zinc-plated finish which may contribute to its durability, corrosion resistance and compatibility with certain environments or materials.
  • Globally Sourced: This product is sourced from international manufacturers. Quality and price may vary.
  • Material: Made from steel which determines its strength, durability and suitability for various applications.
  • Material Grade/Class: This product adheres to the Grade 5 standard which indicates potential strength, hardness and resistance properties that could be suitable for industrial use.
  • Tensile Strength: Rated for up to 105,000 psi tensile stress. Actual performance will depend on usage conditions.
  • Thread Direction & Size: Right hand thread direction tightens clockwise; Thread size of 5/8"-11 ensures fit with corresponding nuts or holes
