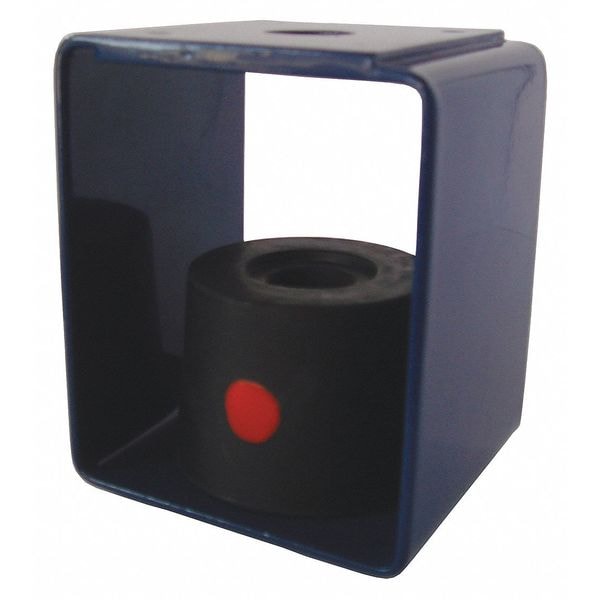

Hanger Vibration Isolator, 10 to 35 lb.
Mfr # 48PW75
Zoro # G5576630
product price: $8.85
/eaKey Features
Isolator Type
Neoprene
Capacity Range
10 to 35 lb
Deflection Range
0.05 in to 0.20 in
Max. Rod Dia.
3/8 in
Lower Rod Penetration
1 1/4 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
48PW75
Zoro #
G5576630
UPC #
190735904381
Country of Origin
China
Dimensions
Max. Rod Dia.
3/8 in
Width
2 in
Height
2 13/32 in
Overall Height
2 13/32 in
Overall Depth
2 13/32 in
Rod Diameter - Maximum
3/8 in
Overall Width
2 in
Details
Item
Hanger-Mount Vibration Isolator
Isolator Type
Neoprene
Capacity Range
10 to 35 lb
Deflection Range
0.05 in to 0.20 in
Lower Rod Penetration
1 1/4 in
Color Mark
Green
Rated Deflection - Maximum
0.2 in
Operating Temperature - Maximum
158 Degrees F
Rated Deflection - Minimum
0.05 in
Rated Capacity - Minimum
10 lb
Bushing Material
Rubber
Durometer
45A
Includes Spring
Spring Included
Rated Capacity - Maximum
35 lb
Load Downward Compression - Maximum
35 lbf
Isolator Material
Neoprene
Operating Temperature - Minimum
14 Degrees F
Description
Hanger-Mount Vibration Isolator, Neoprene, Capacity Range 10 to 35 lb, Deflection Range 0.05 in to 0.20 in, Max. Rod Dia. 3/8 in, Lower Rod Penetration 1 1/4 in, Height 2 13/32 in, Width 2 in, Spring Color Not Applicable, Color Mark Green
