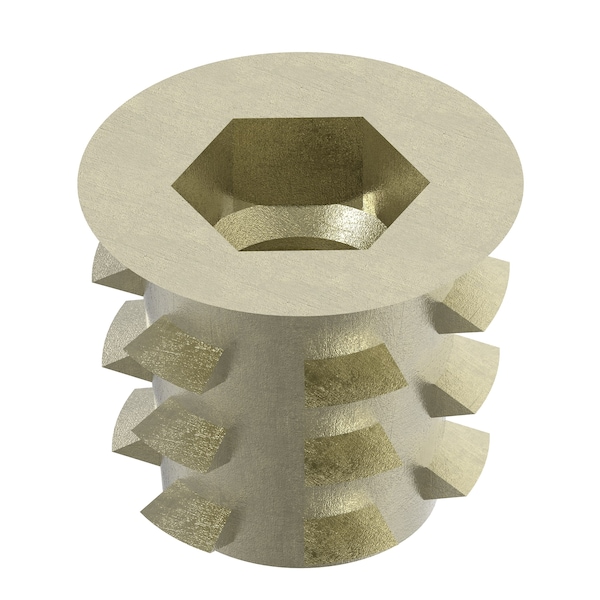

Hex Drive Threaded Insert, 1/4"-20 Int Thrd Sz, 25/64 in L, 7/16 in Dia., Zinc Alloy, Plain, 50 PK
Mfr # 901420-10-PK50
Zoro # G609228116
CAD Available
product price:Â $6.69
/pk 50, $0.13/eaKey Features
CAD Drawing
Insert Diameter
7/16 in
Internal Thread Size
1/4"-20
Material
Zinc Alloy
Finish
Plain
Flange Style
Flanged
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
901420-10-PK50
Zoro #
G609228116
UPC #
847554042021
Country of Origin
Taiwan, Province of China
Dimensions
Insert Diameter
7/16 in
Internal Thread Size
1/4"-20
Overall Length
25/64 in
Drill Bit Size
23/64 in
Drive Size
M6
Minimum Material Thickness
23/64 in
Maximum Hole Diameter
0.359 in
Description
Hex Drive Threaded Insert, System of Measurement Inch, Insert Diameter 7/16 in, Overall Length 25/64 in, Internal Thread Size 1/4 In.-20, Thread Direction Right Hand, Thread Type Coarse, Material Zinc Alloy, Material Grade/Class Zamak 3, Finish Plain, Drive Size M6, Drill Bit Size 23/64 in, Compatible Material Wood, Minimum Material Thickness 23/64 in, Maximum Hole Diameter 0.359 in, Flange Style Flanged, Compatible with Manufacturer Model Number 9000, Features Broad External Thread
