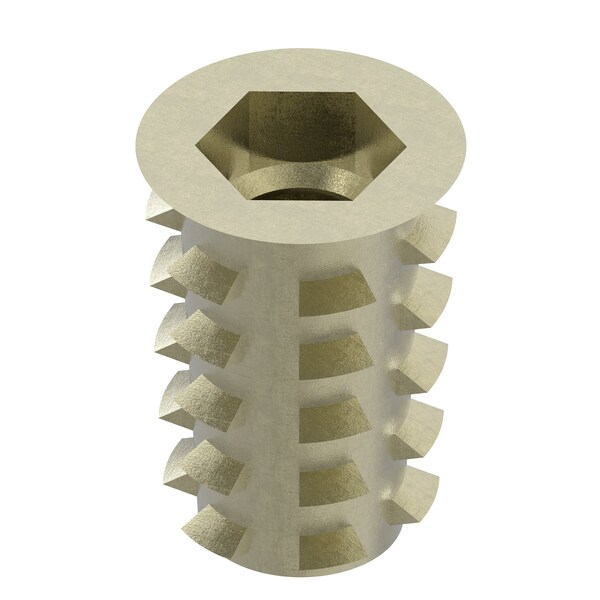

Hex Drive Threaded Insert, 5/16"-18 Int Thrd Sz, 51/64 in L, 35/64 in Dia., Zinc Alloy, Plain, PK50
Mfr # 951618-20-PK50
Zoro # G809228206
CAD Available
product price:Â $11.99
/pk 50, $0.24/eaKey Features
CAD Drawing
Insert Diameter
35/64 in
Internal Thread Size
5/16"-18
Material
Zinc Alloy
Finish
Plain
Flange Style
Flanged
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
951618-20-PK50
Zoro #
G809228206
UPC #
847554042632
Country of Origin
Taiwan, Province of China
Dimensions
Insert Diameter
35/64 in
Internal Thread Size
5/16"-18
Overall Length
51/64 in
Drill Bit Size
7/16 in
Drive Size
M8
Minimum Material Thickness
21/32 in
Maximum Hole Diameter
0.438 in
Description
Hex Drive Threaded Insert, System of Measurement Inch, Insert Diameter 35/64 in, Overall Length 51/64 in, Internal Thread Size 5/16 In.-18, Thread Direction Right Hand, Thread Type Coarse, Material Zinc Alloy, Material Grade/Class Zamak 3, Finish Plain, Drive Size M8, Drill Bit Size 7/16 in, Compatible Material Wood, Minimum Material Thickness 21/32 in, Maximum Hole Diameter 0.438 in, Flange Style Flanged, Compatible with Manufacturer Model Number 9100, Features Broad External Thread
