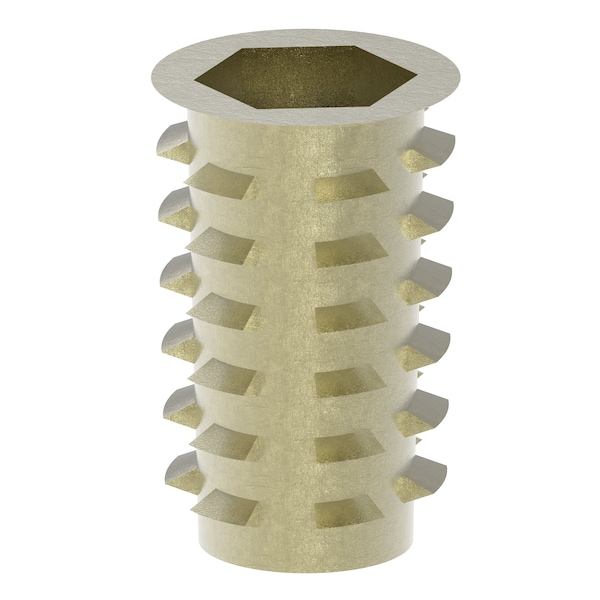

Hex Drive Threaded Insert, M10-1.50 Int Thrd Sz, 25 mm L, 15.494 mm Dia., Zinc Alloy, Plain, 25 PK
Mfr # 901050-25-PK25
Zoro # G409228149
CAD Available
product price:Â $10.49
/pk 25, $0.42/eaKey Features
CAD Drawing
Insert Diameter
15.494 mm
Internal Thread Size
M10-1.50
Material
Zinc Alloy
Finish
Plain
Flange Style
Flanged
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
901050-25-PK25
Zoro #
G409228149
UPC #
847554007617
Country of Origin
Taiwan, Province of China
Dimensions
Insert Diameter
15.494 mm
Internal Thread Size
M10-1.50
Overall Length
25 mm
Drill Bit Size
15/32 in
Drive Size
M10
Minimum Material Thickness
17-55/64 mm
Maximum Hole Diameter
11.913 mm
Description
Hex Drive Threaded Insert, System of Measurement Metric, Insert Diameter 15.494 mm, Overall Length 25 mm, Internal Thread Size M10-1.50, Thread Direction Right Hand, Thread Type Coarse, Material Zinc Alloy, Material Grade/Class Zamak 3, Finish Plain, Drive Size M10, Drill Bit Size 15/32 in, Compatible Material Wood, Minimum Material Thickness 17 55/64 mm, Maximum Hole Diameter 11.913 mm, Flange Style Flanged, Compatible Manufacturer Part Number 9200, Features Broad External Thread
