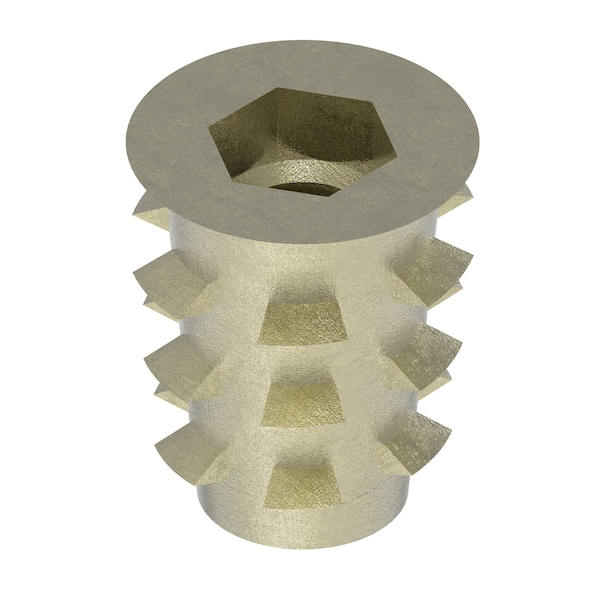

Hex Drive Threaded Insert, M4-0.70 Int Thrd Sz, 10 mm L, 7.391 mm Dia., Zinc Alloy, Plain, 50 PK
Mfr # 900407-10-PK50
Zoro # G509228117
CAD Available
product price:Â $5.59
/pk 50, $0.11/eaKey Features
CAD Drawing
Insert Diameter
7.391 mm
Internal Thread Size
M4-0.70
Material
Zinc Alloy
Finish
Plain
Flange Style
Flanged
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
900407-10-PK50
Zoro #
G509228117
UPC #
847554042618
Country of Origin
Taiwan, Province of China
Dimensions
Insert Diameter
7.391 mm
Internal Thread Size
M4-0.70
Overall Length
10 mm
Drill Bit Size
15/64 in
Drive Size
M4
Minimum Material Thickness
8-15/16 mm
Maximum Hole Diameter
5.944 mm
Description
Hex Drive Threaded Insert, System of Measurement Metric, Insert Diameter 7.391 mm, Overall Length 10 mm, Internal Thread Size M4-0.70, Thread Direction Right Hand, Thread Type Coarse, Material Zinc Alloy, Material Grade/Class Zamak 3, Finish Plain, Drive Size M4, Drill Bit Size 15/64 in, Compatible Material Wood, Minimum Material Thickness 8 15/16 mm, Maximum Hole Diameter 5.944 mm, Flange Style Flanged, Compatible with Manufacturer Model Number 8500, Features Broad External Thread
