  5. Industrial Pressure Gauge, 0 to 160 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

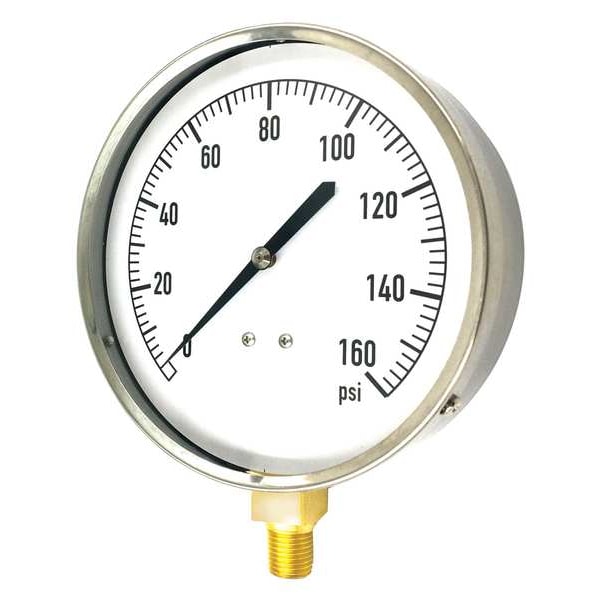

Zoro Select Industrial Pressure Gauge, 0 to 160 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location 18C750 - main

Industrial Pressure Gauge, 0 to 160 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 18C750

  • Zoro # G4740154

product price:  $35.39
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
18C750
Zoro #
G4740154
UPC #
190735393345
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Mechanical Contractors
Gauge Case Material
Stainless Steel
Series
Y120SS
Lens Material
Acrylic
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
For Use With
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Gauge Application
Mechanical Contractors/HVAC
Case Color
Silver
Gauge Primary Range Smallest Graduation
2
Smallest Graduation
2 psi
Socket Material
Copper Alloy HPb59-1
Case Material
Stainless Steel
Connection Type
MNPT
Wetted Materials
Copper
Compatible Process Media
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Removable Bezel
No
Includes Calibration Certificate
No
Process Connection Gender
Male
Pressure Gauge Type
HVAC Dial Pressure Gauge
Accuracy Scale
Full Scale
Dry Dampening Feature
None
Cleaned for Oxygen Service
No
Includes Mounting Hardware
No
Bezel Material
Stainless Steel
Gauge Case Liquid
None
Includes Vent Plug
No
Dial Color
White
Vibration Resistance
None
Sensor Material
Copper Alloy
Freeze Resistant Movement
No
Non-Sparking
No
Field Fillable
No
Pressure Range Type
Pressure
Scale Type
Single
Primary Scale Minor Graduations
2
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Maximum Pressure
160 psi
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Industrial Pressure Gauge, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Nominal Dial Size 4 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Compatible Process Media Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy, Sensor Material Copper Alloy, Socket Material Copper Alloy HPb59-1, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
