  5. Industrial Pressure Gauge, 0 to 160 psi, 4 in Dial, 1/4 in NPT, Bottom Location

This item is Discontinued.

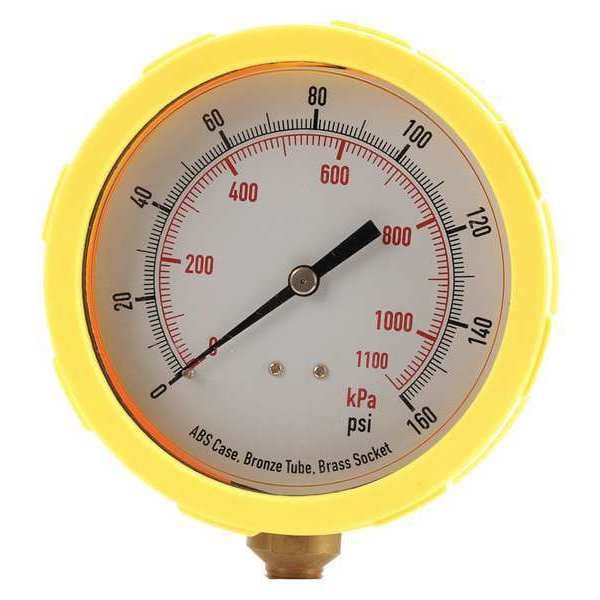

Zoro Select Industrial Pressure Gauge, 0 to 160 psi, 4 in Dial, 1/4 in NPT, Bottom Location 4EFK2

Industrial Pressure Gauge, 0 to 160 psi, 4 in Dial, 1/4 in NPT, Bottom Location (Discontinued)

  • Mfr # 4EFK2
  • Zoro # G0047266
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4EFK2
Zoro #
G0047266
UPC #
190735505007
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Nominal Dial Size
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Polycarbonate
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
1
Gauge Secondary Range Values
0 to 1100
Gauge Application
Test
Smallest Graduation
1 psi
Case Color
Yellow
For Use With
Compressed Air, Water, and Hydraulic Oil on Process Lines, Compressors, Hydraulics, and Machinery
Socket Material
Brass
Case Material
ABS Plastic
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Shop By
Closeouts
Process Connection Gender
Male
Cleaned for Oxygen Service
No
Includes Vent Plug
No
Freeze Resistant Movement
No
Pressure Gauge Type
Industrial Pressure Gauge
Vibration Resistance
None
Gauge Case Liquid
None
Pressure Range Type
Pressure
Dry Dampening Feature
None
Accuracy Scale
Mid-Scale
Secondary Pressure Range
0 to 1,100
Includes Mounting Hardware
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Secondary Scale Units
kPa
Field Fillable
No
Primary Scale Minor Graduations
1
Non-Sparking
No
Includes Calibration Certificate
No
Sensor Material
Bronze
Scale Type
Dual
Dial Color
White
Removable Bezel
No
Maximum Pressure
160 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Industrial Pressure Gauge, Accuracy +/-2-1-2 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 4 in, Lens Material Polycarbonate, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Industrial Pressure Gauge
