  5. Industrial Pressure Gauge, 0 to 300 psi, 4 in Dial, 1/4 in NPT, Bottom Location
Zoro Select Industrial Pressure Gauge, 0 to 300 psi, 4 in Dial, 1/4 in NPT, Bottom Location 4EFJ5 - main

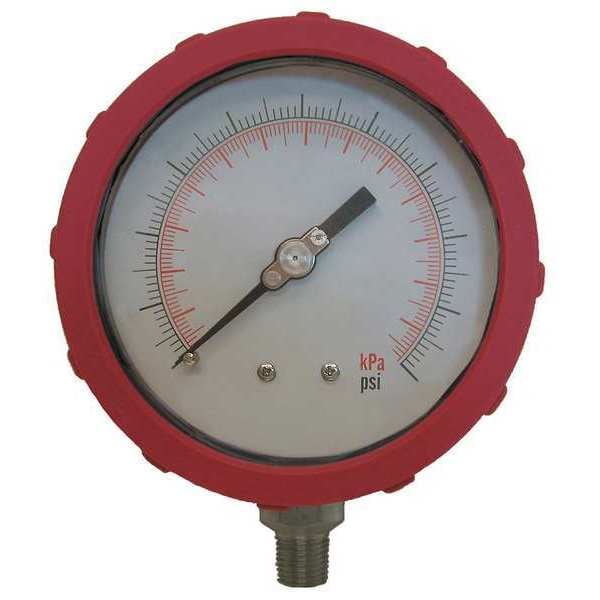

Industrial Pressure Gauge, 0 to 300 psi, 4 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4EFJ5

  • Zoro # G0047205

product price:  $24.89
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4EFJ5
Zoro #
G0047205
UPC #
190735504949
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Nominal Dial Size
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Polycarbonate
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
Test
Case Color
Red
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 2000
For Use With
Compressed Air, Water, and Hydraulic Oil on Process Lines, Compressors, Hydraulics, and Machinery
Gauge Primary Range Smallest Graduation
2
Smallest Graduation
2 psi
Socket Material
Brass
Case Material
ABS Plastic
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Shop By
Closeouts
Accuracy Scale
Mid-Scale
Gauge Case Liquid
None
Secondary Scale Units
kPa
Process Connection Gender
Male
Includes Mounting Hardware
No
Primary Scale Minor Graduations
1, 2
Dial Color
White
Secondary Pressure Range
0 to 2,000
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Pressure Gauge Type
Industrial Pressure Gauge
Includes Calibration Certificate
No
Cleaned for Oxygen Service
No
Freeze Resistant Movement
No
Pressure Range Type
Pressure
Dry Dampening Feature
None
Vibration Resistance
None
Sensor Material
Bronze
Removable Bezel
No
Non-Sparking
No
Includes Vent Plug
No
Field Fillable
No
Scale Type
Dual
Maximum Pressure
300
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Red, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
