  11. Industrial Snap Action Switch, Lever, Roller Actuator, SPDT, 15A @ 480V AC Contact Rating
This item is Discontinued.

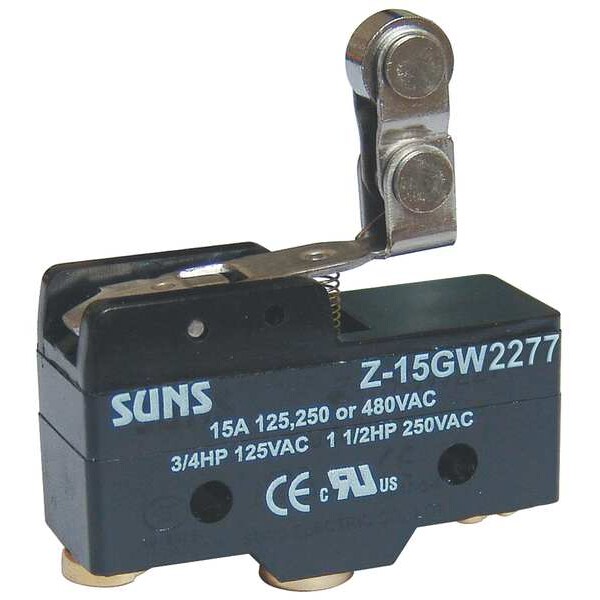

Zoro Select Industrial Snap Action Switch, Lever, Roller Actuator, SPDT, 15A @ 480V AC Contact Rating 5JEE5

Industrial Snap Action Switch, Lever, Roller Actuator, SPDT, 15A @ 480V AC Contact Rating (Discontinued)

  • Mfr # 5JEE5
  • Zoro # G1800206
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JEE5
Zoro #
G1800206
UPC #
190735527788
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
1.26 in
Height - Snap Action Switch
2.11 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Length
1.94"
Depth
0.69"
Actuator Length
1.26"
Height
2.11"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Dimension
1.00" Centers

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
15A @ 480V
Contact Form- Switches
SPDT
Current Rating
15a
Over Travel
0.094 in
Voltage Rating
125/250/480VAC
Contact Form
SPDT
Electrical Connection - Snap Action Switch
Screw
Terminal Type
Screw
Operating Temp. Range
-13 Degrees to 185 Degrees F
Release Force
1.47 oz
Series
Z
Differential Travel
0.031 in
Watertight - Snap Action Switch
No
Operating Force
6.00 oz
Max. Pretravel
0.118 in
Standards
CE, CSA, UL Listed
Type of Actuator
Unidirectional Short Roller Lever
Housing Material
Phenolic Case and Cover
AC Contact Rating
15 A @ 480 V
Overtravel
0.094 in
Differential Travel - Maximum
0.031 in
Pretravel
0.118 in
Actuator Style
Roller Lever
Electrical Connection
Screw

Description

Snap Action Switch, Lever, Roller, AC Contact Rating - Snap Action Switch 15A @ 480V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.26 in, Height - Snap Action Switch 2.11 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
