  11. Industrial Snap Action Switch, Panel Mount, Plunger Actuator, SPDT, 15A @ 480V AC Contact Rating
This item is Discontinued.

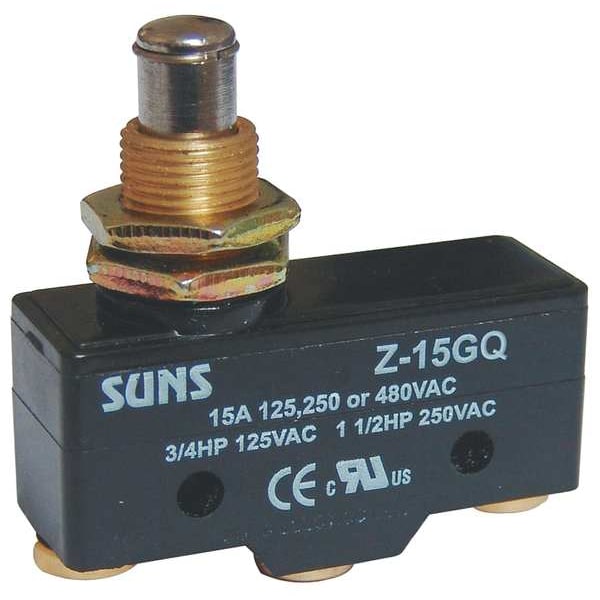

Zoro Select Industrial Snap Action Switch, Panel Mount, Plunger Actuator, SPDT, 15A @ 480V AC Contact Rating 5JED7

Industrial Snap Action Switch, Panel Mount, Plunger Actuator, SPDT, 15A @ 480V AC Contact Rating (Discontinued)

  • Mfr # 5JED7
  • Zoro # G1104634
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JED7
Zoro #
G1104634
UPC #
190735527702
Country of Origin
China

Dimensions

Height - Snap Action Switch
1.24 in
Width - Snap Action Switch
1.94 in
Height
1.24"
Length
1.94"
Mounting Dimension
1.00" Centers
Actuator Length
1.94"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Overall Height
1.24 in
Overall Width
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Panel Mount, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
Contact Form- Switches
SPDT
Electrical Connection - Snap Action Switch
Screw
Voltage Rating
125/250/480VAC
Over Travel
0.217 in
Operating Force
12.34 oz
Current Rating
15a
Series
Z
Max. Pretravel
0.016 in
Type of Actuator
Panel Mount Plunger
Release Force
4.02 oz
Operating Temp. Range
-13 Degrees to 185 Degrees F
Watertight - Snap Action Switch
No
Contact Form
SPDT
Differential Travel
0.002 in
Terminal Type
Screw
Housing Material
Phenolic Case and Cover
AC Contact Rating
15 A @ 480 V
Differential Travel - Maximum
0.002 in
Electrical Connection
Screw
Actuator Style
Plunger
Body Material
Phenolic

Description

Snap Action Switch, Panel Mount, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 480 V, Contact Form- Switches SPDT, Height - Snap Action Switch 1.24 in, Width - Snap Action Switch 1.94 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
