  11. Industrial Snap Action Switch, Pin, Plunger Actuator, DPDT, 20A @ 240V AC Contact Rating

This item is Discontinued.

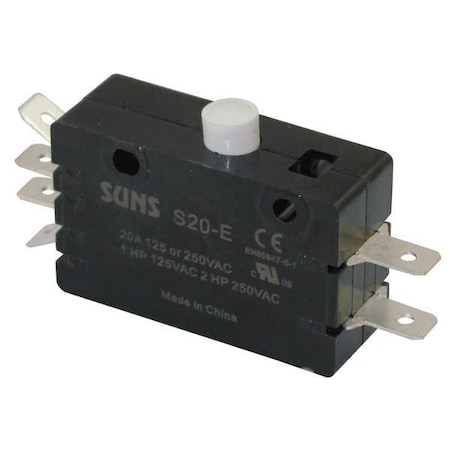

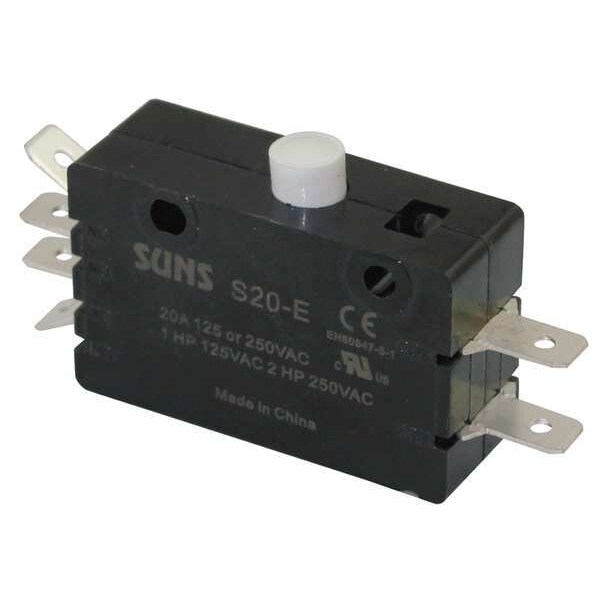

Zoro Select Industrial Snap Action Switch, Pin, Plunger Actuator, DPDT, 20A @ 240V AC Contact Rating 5JEH5

Industrial Snap Action Switch, Pin, Plunger Actuator, DPDT, 20A @ 240V AC Contact Rating (Discontinued)

  • Mfr # 5JEH5
  • Zoro # G0538727
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JEH5
Zoro #
G0538727
UPC #
190735528044
Country of Origin
China

Dimensions

Height - Snap Action Switch
1.12 in
Width - Snap Action Switch
1.82 in
Length
1.823"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Actuator Length
1.82"
Mounting Dimension
1.00" Centers
Height
1.125"
Overall Height
1.12 in
Overall Width
1.82 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
20 A @ 240 V
Contact Form- Switches
DPDT
Housing Material
Phenolic Case and Cover
Series
S
Differential Travel
0.015 in
Operating Force
45.11 oz
Terminal Type
1/4" Quick Connect
Watertight - Snap Action Switch
No
Electrical Connection - Snap Action Switch
1/4 in Quick Connect
Contact Form
DPDT
Release Force
9 oz
Max. Pretravel
0.1 in
Current Rating
20A
Type of Actuator
Pin Plunger
Voltage Rating
125/250VAC
Over Travel
0.05 in
Operating Temp. Range
-40 Degrees to 221 Degrees F
AC Contact Rating
20 A @ 240 V
Body Material
Phenolic
Electrical Connection
1/4 in Quick Connect
Actuator Style
Pin Plunger
Differential Travel - Maximum
0.015 in

Description

Snap Action Switch, Pin, Plunger, AC Contact Rating - Snap Action Switch 20 A @ 240 V, Contact Form- Switches DPDT, Height - Snap Action Switch 1.12 in, Width - Snap Action Switch 1.82 in, Electrical Connection - Snap Action Switch 1/4 in Quick Connect, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series S
