  11. Inverted Air Cargo Swivel Caster, Nylon, 2-9/16 in
Shop All Plate Casters
Zoro Select

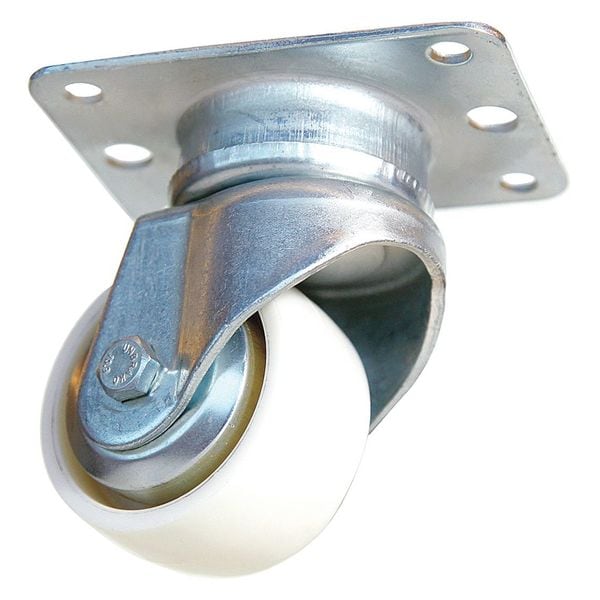

Inverted Air Cargo Swivel Caster, Nylon, 2-9/16 in

product price: $13.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Nylon
See all product information

Product Information

Dimensions

Overall Height 4-1/32"
Wheel Dia. 2 3/4 in
Wheel Width 1 1/2 in
Stem Dia. No Stem
Caster Plate Size 3-1/8" x 4-7/16"
Plate Size 3-1/8" x 4-7/16"
Mounting Bolt Dia. 3/8 in
Mounting Height 4 1/16 in
Mounting Plate Size 3 1/8 in x 4 7/16 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Nylon
Load Rating 450 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Plate Hole Pattern H
Caster Temp. Range -4 Degrees to 176 Degrees F
Caster Frame Material Steel
Plate Thickness 1/8"
Standards ISO 9001
Caster Wheel Bearings Ball
Caster Product Group Swivel Caster
Wheel Color White
Caster Min. Temp. 0 Degrees F
Non-Marking Yes
Inside Bolt Hole Spacing 2-3/8 in x 3-3/8 in
Core Color Silver
Caster Max. Temp. 175 Degrees F
Caster Raceway Double/Single Ball
Caster Swivel Lock Type No Lock Included
Item General Purpose Inverted-Mount Plate Caster
Plate Caster Bolt Hole Pattern H
Caster Temp. Range Available Yes
Replacement Wheel Mfr. No. 065 NY1L
Caster Core Material Nylon
Frame Material Steel
Caster Plate Thickness 1/8"
Outside Bolt Hole Spacing 2-3/8 in x 3-1/2 in
Frame Finish Polished Zinc
Caster Brake Type No Brake Included
Wheel/Tread Hardness Rating Hard
Wheel Core Material Nylon
Load Rating Range 300 to 999 lb
Swivel Raceway Type Double/Single Ball
Swivel Lock Type No Lock Included
Number of Mounting Holes 6
Swivel Construction Kingpinless
Tread Shape Standard
Includes Thread Guards Yes
Mounting Plate Bolt Hole Pattern H
Wheel Bearing Type Precision Ball
Wheel/Tread Material Nylon
Wheel/Tread Color White
Shop By Closeouts

Description

Swivel, General Purpose Inverted-Mount Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 3/4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
