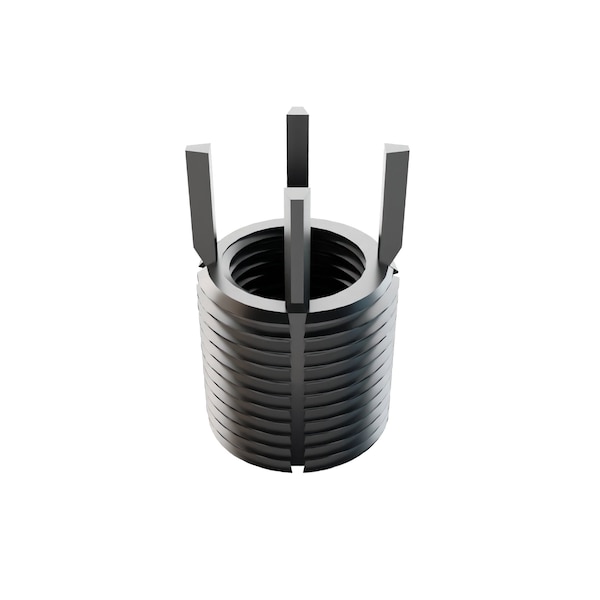

Key Locking Insert, Heavy Wall, 4 Keys, 9/16"-18 Int Thrd Sz, 3/4"-16 Ext Thrd Sz, Stainless Steel
Mfr # 215-066107
Zoro # G814228888
CAD Available
product price: $72.59
/pk 10, $7.26/eaKey Features
CAD Drawing
Internal Thread Size
9/16"-18
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
13/16 in
External Thread Size
3/4"-16
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
215-066107
Zoro #
G814228888
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
9/16"-18
Overall Length
13/16 in
External Thread Size
3/4"-16
Drill Bit Size
21/32 in
Compatible Tap Size
3/4"-16
Minimum Installation Depth
15/16 in
Insert Diameter
3/4 in
Maximum Hole Diameter
0.883 in
Description
Key Locking Insert, System of Measurement Inch, Insert Diameter 3/4 in, Overall Length 13/16 in, Internal Thread Size 9/16 In.-18, Internal Thread Fit 2B, External Thread Size 3/4 In.-16, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Fine, Material Stainless Steel, Finish Plain, Wall Type Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size 3/4 In.-16, Drill Bit Size 21/32 in, Minimum Installation Depth 15/16 in, Maximum Hole Diameter 0.883 in
